使用 WASM + Wuffs 在 Web 上快速解析 GIF 演示已完成

2025-06-11

使用 WASM + Wuffs 在 Web 上快速解析 GIF

演示

完毕

GIF，或者说 JIF，是互联网上那些稀奇古怪的东西之一。这种格式速度慢、效率低，而且从 80 年代开始（！）——那时候我们还有彩色屏幕吗？

然而如今，它们无处不在。但如果您想在网络上使用这种格式（而不仅仅是将其显示出来<img>），最佳做法是读取 GIF 的原始字节并使用 JavaScript 进行解析。

这无疑是深奥的，但与原生 C 语言相比，纯 JavaScript 速度较慢，因为需要进行大量低级字节操作和工作。我们如何才能兼顾两者？答案是 Web Assembly，简称 WASM。在本文中，我将向您展示如何使用 WASM 直接在浏览器中进行解析，这比纯 JS 的速度提高了大约 2 倍。

为此，我们将使用 Wuffs：一个用于安全地处理不受信任文件格式的库。它可以生成现代且可证明安全的 C 代码，用于处理多媒体或其他编码文件格式。您可以在此处阅读更多相关信息。

演示

这是fastgif基于 Wuffs 和 WASM 解码 GIF 的库；右边我们使用了一个流行的纯 JS GIF 库。解析 GIF 的时间是关键，在现代 MacBook 上，Wuffs 的解析速度通常是纯 JS 版本的两倍左右。
（当然，你可能看不到如此惊人的效果，但fastgif在大多数环境下速度更快。你也可以尝试其他浏览器！🤞😅）

今天就把它带回家

如果您想fastgif在自己的网站上使用，请点击此处查看。该库和演示版适用于所有主流现代浏览器：Edge、Safari、Firefox 和 Chrome。太棒了！🤖📸

数字

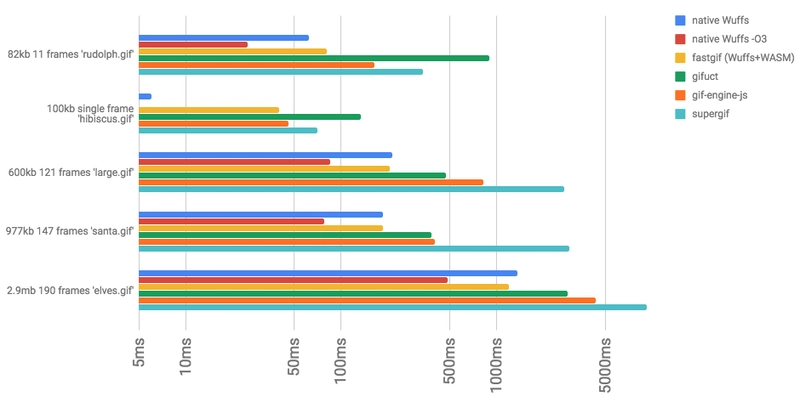

对数图中 fastgif 与其他方法的速度对比

注意：这是一个对数图。越小越好。

一些想法-

  • 在网络上，fastgif其速度几乎与 Wuffs 的本机、未优化二进制文件（从命令行运行的 C 程序）完全相同。
  • 当我们使用它-O3来编译本机二进制文件时，速度会大大加快——这些优化似乎不适用于 WASM。
  • 第二个示例仅包含一帧，对于本机情况来说非常快：这暗示移动大量字节对于网络而言成本高昂。
  • 基于 Web 的方法也包含一些启动/解析时间。重复解码可能会更快。

尽管如此，fastgif这或许是网络上解码 GIF 的最快方法。另外：这类工作最适合在Worker主线程之外进行——但这超出了本文的讨论范围。

想要了解更多？

如果您想了解有关如何fastgif使用 Wuffs 并使其在网络上快速运行⚡💨的更多信息，请继续阅读！

这篇文章的其余部分适合以下人群：

  • 对 JavaScript 有很好的理解
  • 具有 C 和命令行的基础知识
  • 想要将任何原生库（不一定只是 Wuffs）移植到 Web

步骤零：获取 Emscripten

虽然您可以手动或使用其他工具编写 WASM 文件，但构建 Web Assembly 的主要工具链是 Emscripten。您可以按照此处的安装说明进行操作。

一旦您设置完毕或想要恢复编码，请确保emsdk_env.sh为您的平台提供源代码：

# Linux/macOS
source ~/Desktop/path/to/emsdk/emsdk_env.sh

# Windows
C:\path\to\emsdk\emsdk_env.bat  # or .ps1 for PowerShell
Enter fullscreen mode Exit fullscreen mode

Emscripten 需要设置特定版本的 Node、Clang 和其他一些环境变量。这也意味着您无需以 root 身份安装 Emscripten 即可设置它，因为它不会替换您系统上的任何东西。

第一步：构建一个简单的演示

与许多其他原生 C 库一样，Wuffs 也有一些演示应用程序，它们的入口点为int main()。这些应用程序将从命令行读取输入，并将其输出到 Shell。这与我们想要在 Web 上实现的功能并不匹配，但它是一个不错的起点。

在 Wuffs 的案例中，下面有几个例子example/。我首先尝试编译 GIF 播放器，它通常会将 ASCII 艺术输出到终端。

git clone git@github.com:google/wuffs.git
cd wuffs/
source ~/Desktop/emsdk/emsdk_env.sh

# finally, compile:
emcc -s WASM=1 -o gifplayer.html example/gifplayer/gifplayer.c

# and run a quick webserver of choice:
python -m SimpleHTTPServer
serve
Enter fullscreen mode Exit fullscreen mode

这将生成gifplayer.html、gifplayer.js和gifplayer.wasm。这是 Emscripten 的用处，主要用于调试和入门——现在，如果你http://localhost:5000/gifplayer.html在浏览器中打开，你会看到：

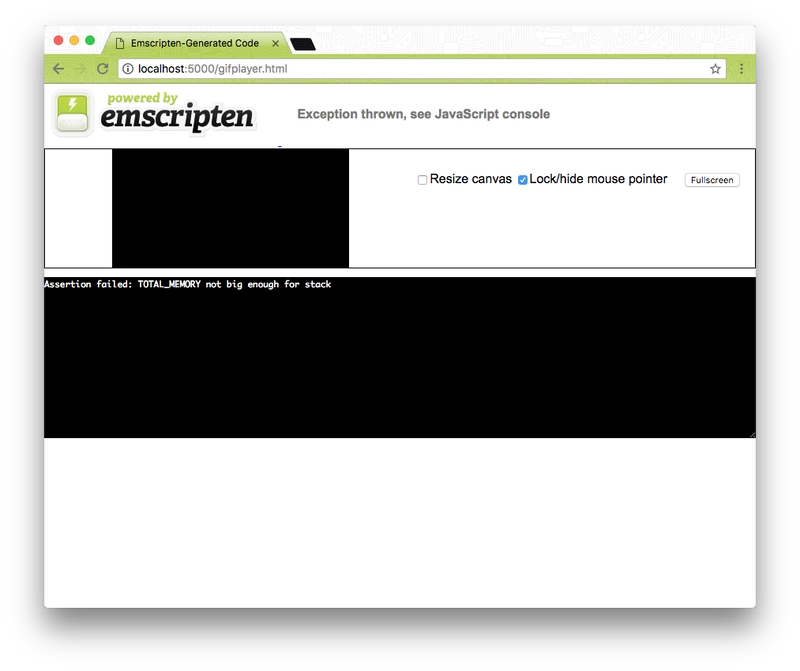

断言失败：TOTAL_MEMORY 不足以容纳堆栈

...实际上，我们看到了一条错误消息。💥

稍后快速 Google 一下🔍，发现我们需要为程序分配更多内存。让我们重新编译一下：

emcc -s WASM=1 -s TOTAL_MEMORY=128MB -o gifplayer.html example/gifplayer/gifplayer.c
Enter fullscreen mode Exit fullscreen mode

太棒了！现在打开，我们会看到：

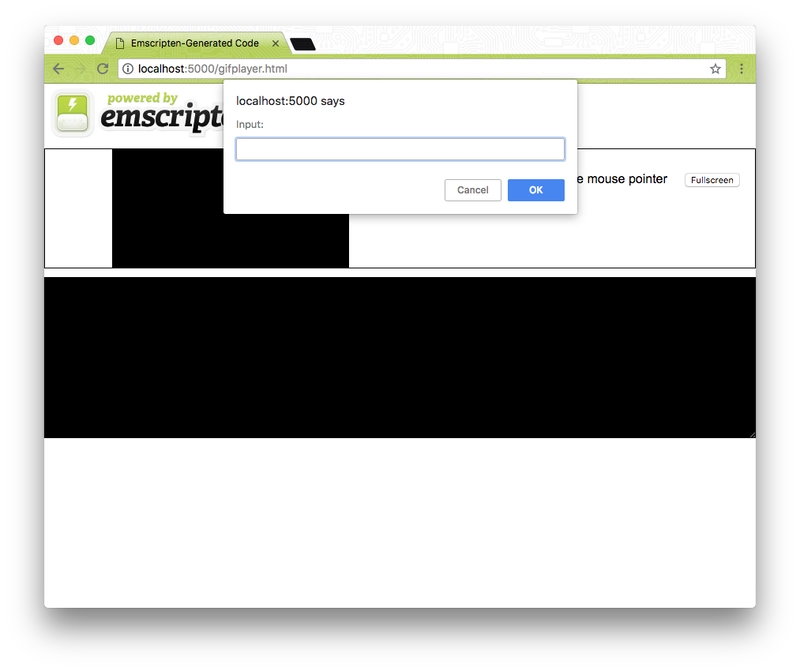

等待输入

当您使用 eg 请求输入scanf或从命令行读取时，Emscripten 默认会使用 JavaScript 方法prompt()请求数据。尝试粘贴一些文本——浏览器会持续提示，直到您取消输入（这将计为 EOF）。

不幸的是，即使复制粘贴原始 GIF 字节到这个表单中也没有任何效果。如果你复制粘贴后查看浏览器控制台，你会看到一条“gif 解析头失败”的消息。

代码运行起来了——耶🎉！但是因为我们没法传入真正的字节，只能传入一个 JavaScript 字符串，所以什么也没发生🙅。

第二步：将原始字节发送到 GIF 解码器

就像C 语言中的方法gifplayer.c一样int main()，当我们启动它时，它会运行一些操作——等待输入。虽然这是一个很好的起点，但我希望能够传递原始字节——例如来自window.fetchAJAX 请求的数据。

让我们修改它来实现这一点。

a. 删除 main 方法

我可以打开该gifplayer.c文件并修改它，只需通过注释掉main和方法即可将其删除：fail

/*
int fail(const char* msg) {
  ...
}

int main(int argc, char** argv) {
  ...
}
*/
Enter fullscreen mode Exit fullscreen mode

b. 用接受传递的缓冲区来代替从输入读取

让我们注释掉该read_stdin方法，并添加一个read_buffer方法来替换它。

/*
const char* read_stdin() {
  while (src_len < SRC_BUFFER_SIZE) {
    ...
  }
  return "input is too large";
}
*/

// add this method
const char* read_buffer(uint8_t *buf, size_t len) {
  src_buffer = buf;
  src_len = len;
  return NULL;
}
Enter fullscreen mode Exit fullscreen mode

然而，src_buffer以前是基于 的固定大小缓冲区SRC_BUFFER_SIZE。这限制了从命令行读取的数据量。因此，我们将接受指向内存中某个位置的指针。让我们更新 的声明src_buffer：

// don't need a fixed buffer, now just a pointer
//uint8_t src_buffer[SRC_BUFFER_SIZE] = {0};
uint8_t *src_buffer;
size_t src_len = 0;
Enter fullscreen mode Exit fullscreen mode

c.重新编译并传递数据

现在，让我们重新编译并通过该方法直接在 JavaScript 控制台中传递数据read_buffer。为了正确地将方法暴露给 JS，我们需要在编译过程中指明它。我们还需要该play方法来显示输出。

emcc -s WASM=1 -s TOTAL_MEMORY=128MB \
    -s EXPORTED_FUNCTIONS="['_read_buffer','_play']" \
    -o gifplayer.html \
    example/gifplayer/gifplayer.c
Enter fullscreen mode Exit fullscreen mode

好的，现在让我们重新打开 Emscripten 窗口。什么也没有发生，控制台中也没有出现任何相关的错误消息——我们不再执行任何操作main()。

但是，我们可以运行Module._read_buffer方法来加载缓冲区。默认情况下，Emscripten 工具链在全局 上公开这些方法Module。它还公开了 C 标准库中的方法，例如malloc和free。

测试需要几个步骤。我们需要获取图像的来源，分配malloc一些内存，将其传递给read_buffer，然后播放。以下代码就是用来执行此操作的——请将其粘贴到 JavaScript 控制台 中：

// the following base64 string is really long- just copy and paste this whole section
// it's the base64 encoded version of:
// https://raw.githubusercontent.com/google/wuffs/master/test/data/muybridge.gif

const testGifB64 = "R0lGODlhHgAUAIcAAAAAAAEBAQICAgMDAwQEBAUFBQYGBgcHBwgICAkJCQoKCgsLCwwMDA0NDQ4ODg8PDxAQEBERERISEhMTExQUFBUVFRYWFhcXFxgYGBkZGRoaGhsbGxwcHB0dHR4eHh8fHyAgICEhISIiIiMjIyQkJCUlJSYmJicnJygoKCkpKSoqKisrKywsLC0tLS4uLi8vLzAwMDExMTIyMjMzMzQ0NDU1NTY2Njc3Nzg4ODk5OTo6Ojs7Ozw8PD09PT4+Pj8/P0BAQEFBQUJCQkNDQ0REREVFRUZGRkdHR0hISElJSUpKSktLS0xMTE1NTU5OTk9PT1BQUFFRUVJSUlNTU1RUVFVVVVZWVldXV1hYWFlZWVpaWltbW1xcXF1dXV5eXl9fX2BgYGFhYWJiYmNjY2RkZGVlZWZmZmdnZ2hoaGlpaWpqamtra2xsbG1tbW5ubm9vb3BwcHFxcXJycnNzc3R0dHV1dXZ2dnd3d3h4eHl5eXp6ent7e3x8fH19fX5+fn9/f4CAgIGBgYKCgoODg4SEhIWFhYaGhoeHh4iIiImJiYqKiouLi4yMjI2NjY6Ojo+Pj5CQkJGRkZKSkpOTk5SUlJWVlZaWlpeXl5iYmJmZmZqampubm5ycnJ2dnZ6enp+fn6CgoKGhoaKioqOjo6SkpKWlpaampqenp6ioqKmpqaqqqqurq6ysrK2tra6urq+vr7CwsLGxsbKysrOzs7S0tLW1tba2tre3t7i4uLm5ubq6uru7u7y8vL29vb6+vr+/v8DAwMHBwcLCwsPDw8TExMXFxcbGxsfHx8jIyMnJycrKysvLy8zMzM3Nzc7Ozs/Pz9DQ0NHR0dLS0tPT09TU1NXV1dbW1tfX19jY2NnZ2dra2tvb29zc3N3d3d7e3t/f3+Dg4OHh4eLi4uPj4+Tk5OXl5ebm5ufn5+jo6Onp6erq6uvr6+zs7O3t7e7u7u/v7/Dw8PHx8fLy8vPz8/T09PX19fb29vf39/j4+Pn5+fr6+vv7+/z8/P39/f7+/v///yH/C05FVFNDQVBFMi4wAwEAAAAh+QQECgAAACwAAAAAHgAUAAAI/+UEmjt3Dl1BhOjSpUOnUN06dQshqlPX0Bw4jOHEjSNHbtzHjuXMlSN3DZs5c+QECuT4UZu3b94yhqNJc+NHcIcGfazZkya2bdy6dcP47Ru4cBiRfhMVJ1jRbtZgHsWITdu2od2mygRntJsiJ4jIdW22yc2uoUa9UTOZTdvVbUG5zd0mTA4UP7myxZqjg4iQXdq4bdNWzRo2bNniXs0mbNgyasu2gTsmxU2TIDxs6IjSLO42w9ee7WK2LNquNitc1Fixw8yuXWOYNImi5pcmJHGsarNmMlSKFFXI1MnB4keSKGHQyKGmiNAZO87GhdM2a7A2aoZpkRnGjVqeFzGGtP84kaNGGlRv1GxxJO6ouHDbsmHLbk1wTG7EmJhQ8WLIiRNmOMEFLO6AqRtuvOlGm2uuqS8boebyZhcaXkiEG1SsWEGGFXy4JZwFrWrwmmqmoeYwt+LCpYtkxFAGHHHECYYFFkQJ5xtuGBzRsGimQfEzakrhJAmhjhqGDFoq+aYb+UwaEZtoTkQMrsmeKQSTT6jhhg5nxLGFmcGyyeaa+RDrsZoG3XpLpmNoaWSPSy4ppZRbctSmzPkajEYaNK1RUzCYwPFGGm2o+oaw+ayxpj5roPHRmmrUVKwbrwD1RkH5EiXxxGpouUWXX3whhplmkhmGmGWWAQaYYpZpphlkllEx5plmjFGGGF10uQULNdoAZJBFKInkkUs2QcWVWVZZpRRYWFGFlFA40UQSRQCxFpCAAAAh+QQECgAAACwAAAAAHgAUAAAI/+PKmTt3Dl06hOgKoiOYEGE6dOoeqouI7lu4ceLIDSRYjhy5jOE+Gks1DmRGkB5BbvsGDly4cOLGZRQX7pu3bt62JRrjDVzLb9+6vfx5bZu2bdy65Qy6dFs2a8XczGnWbdu2atCwaVPajZs1bWG5el3K7em1X0hmiDGbLdmdJpaqXQ1bLZu2bHe57eUWFpu1ZbAwcaJkqxCXFjBaULoWNpu0atasXcOWN9uzVq5o4YpVDByxI0+KxEiRgoULXFu1QZtGTdkuYcaixboyY0iPFzl4pHrmR0mYJnCIqXJipVnYaNSmsVlRxEoiND5m7OjxZEoXPtIM9UkzRpg3m7Aaa/9LTq3Vo2mA79CwUQPHCxgytizagkZMInDcvN3Uhg3bs2mkoaYybK4RBowYYIhhBhhYiOEEF4rAIhpusLlqm7+sYSaa5P6qhppruJmkBiOkmcQHFVx4AYdVutGmGseukUyZZpyZ5kMcp0FDFSp84maWE4Z4wRe/8soQsGegEVC5G4H5AxMtcMmGm2qS6CaaU1SBirICr7lmmWfClGbMMa3pRhpM4oBkmmAw8cabY2jJ0MsukWHGmWeiGROaaKapzBtcFglDkWGw6UUUbaypRkbJqqmGGGXuzBOaJJOzC6ldhunmmEKvycpRR6mhZphklmmmGT2jgUZJaibzMy8vPZ1PphnlRA1QlVl2ASYYW3D5xRZdhhEGGFpo+cUYZIwh5phinBEGmWWSUZYYJdK4g49ECDEEkkk2AcWTUlqJhZRUXFkllVNI8YQwTzYhjJGAAAAh+QQECgAAACwAAAAAHgAUAAAI/9++mUOnTh26de7WqWv3rqE7du8kMoQXr6I7eO/cXcMWjly5cuPKpUNH0CA7dum63Uo3bt3DdyjZqYNWbRu3b968gRtHLtw4c+ZIkvMkpOM5dezWLUSH7pwzadi0bbu57Rs4cOHEkTOXbRCXXefCEVyXTl26c2mfRavGEVu2bd3ACQRHbhqXGEq8nfO27RaqXOjSBS3nDJq0aRzhygWnE1wyT4ISfRp2qAgMKFJ2lSxHrpmyZs+kUWs7ddiwYst4qYpm7MUVGChOzBjypFpnz8yaJYulSxi1Y246lFgRIoULTLSWrBiSwgksRUECbS237JkzNxs+iBhjxQUJGjKKHP+hcodXFjhTsNBqaYzOtc7JnDFDxeOVLVuAVKhI0QKFjB6mCGSLLJzo45ym0kmHHAaNOcY6ZNzaJYgVSoDhBBRmgMGDFHKQIhlzzgnxHAbHOSYZZZSpZhrStMFmERZiiKUMEkbgcAVGQMKNHHF61I0ZZ6KRJhpqrulGnDFi0KYcalQRooQQtpDFG3LGsTKcuZoJDZppWKymmmyeeUEHXrL5hRtRLhnHGl9UwRIrunQj0hqO2rJmm2nssGMPWHipphBxwoHmGHEEEsibbgwjjc5rurwmm6ssgaUXWFDZ5BtuWrmmsW6+6aabbZRxZi3SrqGGGmuw4QYccU7JBCdxuolyBpZwPOWGG6pCZYYZLk+dRppqrIGLTmB24aYbbZ6Ry5tbt9HmWU46keQSWGa5ZZdcdOFFF1tQkaUYYHwhRphYiHEmmWOOMYaYYYgBg4wz0iBDjTXUcGONNvLwYxFLJGnEEEQGYaSSTCx5JJFB+jiEkYAAACH5BAQKAAAALAAAAAAeABQAAAj/38KBCyfOYMFx4saNI1eOHDlxDx8qDLcQ3DdvGbt1w+iNWzdv3y4SBAeOGq9vIrttY6kNG7ZsLLNl01YzG8xt3D5u7OYJhzJt3LBZo1aU2rRpMK8pHWrtGs2a26ZREvNJ29Nr0p5JkwbNa82XQ69Vo1YtGzeW0dzcMLMtW7VrzXixghbNbjSw16xVI1v2WktlmNiUSRWME5kVJVScqhsNWt5rRclOswbT2jFj2H4JOXNDiJEULGQUK0st7LXI046yKtNljBY4XWy54nIjSZEngpaIMHSUGuprwrQ4ucLIjwwTSoo4sTKlELM5cLh06ZSNmSIYwlSjrhasyaFaqiit/wiBg0cKIl/8rIpTx0kabW65CTsqrey0aL74UkPlQQSGFFBAgQchblDCiS1a0eYtmKaRBilqvHKQK2kmKUEEF9gYYQQXTmgiiDR8g0aaaJxpxhm7nHHmGRVXhCYTE1CwyxZLqshhiCcYmUWaZphxZplllOlxGWaYaYZIIKNJwwZijnLwFDaI4cWRW4BMJhlllnnmGWaIPJKZLJ3Zow4+/qgEmUagMSyaZ0RxhhlksEQGmmeCVOZOZZA5JplKPoHGmV4YCUYRV7aSZhNohgTSKziVSQaZZTA75hlEggHzmWT2o5OVEodMphlQHdXzmGKIKcbROixtZpgJvWqGzlGP8UzFl1t62YWXXW6xBRZaYIHFET1kgeWTW2qhpRZbeOFlFlVUQSUVUSSphBNKHjEEkD78yCOQRCRBhJA/HHmkEkkSOaQRRfRQowsvsggIACH5BAQKAAAALAAAAAAeABQAAAj/5s6dQ0cQXcGD6RSaU6fwYEFz5ciNE9ctG7Zw4sZt3Khxo0Ry3MiRC7eLWzhw37px25atWjRo3r6Bo/ntm0ybNMFhsymsAquV2a5dq0btWTNm3bwt9dZtJTduSm9i47YKCZ9r2oZaKyrNGbNl25w6lek0alNv1BRdoJGs2zZs1qQli+YVbNSxTbnpdbpNGqouefZYU5bJDY8XfaI5a9YM79ixUKNmi6YMHLctZCwwWIBgwIFZ0J492yZZmzao25pRKsRoESZArmIJ2VCCgYYYNAbcEU0a6rQqPqY44lSkBA0bOJI0KfMsjJYeHaooS8YFhDBmzFhyyzblUjFSpmh0/7jRYgaNKnhiOZHyYkWxpd0A8VoW9vQ2a+CawuoAQkQMDzyAIYgMfDjBhjy82UasbqDJ7ppsstFmLG2qacKDDVawYoQQSIgABhgyuCUba6zB5ppmlknGGggl3OY0bVRZwYgagJHmF1IMgcEEGvQIZpppqJlGGWWOqWaoa7CJUJtspBGiFUZEycapb7ZZ5hY87ADEGWicQQaZYqph8cQls6GEj214EcOZBaEqsZRsfgGly2SSQaZEE5VkEps0mnGKmUg6gabCUjJh8RpTZmEGmWPCFHOoi04kBRpuUKsGGUeMUZK7oqrBRBljhhGGGmrEfFTMZlTBBptqklGyKBa5klImmmeOAcYXX4ARps5lFk1mmGMcSUUYWkbxhZdbatlFF150qUWWWErR5JJLJqHElFJQKYWUUjwpJZdXTCEFlU48yUQSRxxhxA84upAiiCB2sCEgACH5BAQKAAAALAAAAAAeABQAAAj/48oNNGfu3MFz5sahY5jO4UN16tJFlJgOnTdx4sJl5KixG7ly5MaJlEUNJDmUA0OO2/YN3DeYLsG9zAYunE1wyVCMCnfT5TdvM79xExoTKNBtQr21UmIoW8xu3bZl8+atm7aoWbtx47oNW9Vuj0jIOAVuGzdt1KxBs6aNW7dsXLlGRTs1rtRZbkBFGfbMWKEpZWzY0rbN69u3W7cVtnbNMLZdLi3l4GKCRYwUJbZg06bNMbdt1651xkZNVSZTqVRtCtXLSxEdRHzwePJixa3Ojrc9CzIiyJ9JSVCcMIFCRo8qyvbYsQLECSxriW4k6mwtW7ZrTTLRAvVJxAcaLHbI/0jyhlaXGUOAiConkJSXttY5YwO3tRGFDyhMeODAgkgJF4SQ4QeMbBLnm8WqwQYbqqTKZpIMPAghBzZQEOFCHIawIY1wwLJJG2yiaQybx6wpRQMQXiBjnG6MeWUTRJIgoocwiulsm25Ei4aaazjLxhppDGlhFVWycEmckUYyJxkwMLnGGs6sqWYa667TJhs+rCiGHGSogKmnnjICxxNRNIEyG2yuoYbB67AbwxpxwLlGjGS8kcmmcGJxRpxiJOGsxzXTZPORqqbS5hBhuKlqUWZe8kYZR6bBxpppREsTTUjO2mYacLJp5BXQzlJUMc+oUYuXYpIZRpljimlkFV+IkT4Fl1JYQSQXXnrhBZdehhlGGGCC8WUXXMjAQw4/ECHkEFAkQWSRSSbZxJJKCvFjDz/sqCOPO+IogwwutrAiIAAh+QQECgAAACwAAAAAHgAUAAAI/9/CiQs3UFy3ceTIlTPX0OG5c+giQjznkNw2bt0yevuWDRy4guLEjUvoTRa4cikVkiNIEBu2bNm2YbzWzZu3bt8+Frz149g4kQXDfbvpzZq1a9eyadNWjVvGjeC8qdICiuBHot64Ydx2tFo1azCpxWS6rds2RiN64AqHU6O2bUtnfv169Nq0pDCZVhOlhNSVXdqgbbLSZQ8rbHPBWquLF2nMbNGWecvmycOZCB9KcIBQhNpcamCZRasGrVo0XLF+8fKV6dinLkFeiHBh4kIFCqyyXaM2jVqsERxcgAk05AUNEx0ydJhjDQuWJR5sWDrmZkIimNV64/rCCtcwOC42dP8AkeHBg0HOWJTQcEJTwWx4jljL1luatGrYrP2qICHDBwwwmACBDFwQYYQMVogGp2+i+UWbbKrxbRrtpmlFwAxQkEOKDzIAoYfNPCBjmqVyAgdCaqSJBppoVixFAw8wQMEZcKj5ZRVOHgEkCAuyYIOaxLjRBhtqUnwGmmd6kcIOY1BghCm3ivImk0AowW8xa3yrRkVhhhBFm2BUSOYouGbK5qVsGLGjxfvuC623aBDJZRprGnEkwmrOxOYaCSm8hgxenjmSRRVVrCUUaZCZRphJJKTmGmtSdMYZaO7bRRFblJm0GWgofcaPI4/BL5RdpDEtxWaWaeYZaR6NppJWnGlNpplffPElmFhkeYUWXGzRxQtGWLklllhaecWVVmTpJRdecpGFFVZa+WOQQgZZ5BA9pmXEEk0UCQSRQOBAA4sw3oAjjS60WMIIIHzoISAAIfkEBAoAAAAsAAAAAB4AFAAACP/hxpEjWM6cuXPo0KlTx87hOoft3E10B88ivHfvvIHj+I1jOHHjyhlUiO4cN2Dp0kFkJ7FlO3bbtmmbSbObN4/gxJUjOM7UEnDmVKpcx1ClNWvVsCG9to3bTZwgw7EioosnuXMIEWY9dw0pUqXZtnX75o3st0wkdggbJy5kwZEHsV3zOo1atWvYaD7tFo2Qj1xyaH1b5onNGVm/Cia9Vk1aNLt5s+21y43brSJZZjRxsoOFGYHipo1OlisXL2TSnhUL5swZslbW9rQJo8RKlyUrbvwYppPatGiYJky4YARPixAoSKQQ0cLTLy1r3jC5MuqaoxuiwoX7HU0XHlvKmjn/CbEhw4kZNm6MSvVDSI0morJ+Q5RHZzXH1LJZk2bKAoYPKsiAgwxMgEEIHGb44YdpyDEIG2C2S2oaaaiJZpk+MNiAhCg2GQOEEDpgwYYabpCjm3EGGokjah6DBhpmfvnBAw5EQAaccLRJBhZNVqlFiirWiESaFMcB6bFmnGlGlickWUOGWrrZ6yaQyEnmEXK8WUUncL4J5xlonFlmmCdkeYMMZLrZjy69bvpmHEquAUeYaL4pizBmlkHGD1+USUOauaq5ixqksJmsr1K4mQYYyyxTRhlc/IDlGGMaARMaMCmUxi5r6OqGFmmgOUYbbAw95phTfilmGGIo6VMZZmB8WkaaTfHLyxpNriE1r2tA2eSRQjz5pJNEqsBEFFFIWUSTU2ihpRZbctEll1M+waWWWGR5JQwvsPhiCiuwMIOOMdA4gw48+PCjjzzssCOQQAjxo4412oAjjjoCAgAh+QQECgAAACwAAAAAHgAUAAAI/+EEhhNXsOA4hOPILWSIkFzCceLCgaNYseJAggYLNkOmsaDAbyG9eQsZ0iI4jAIZ5UkpENzIbt1GljT5jeJEcN9KgSl2Eee3mNxkkqRZ0iKnEkaEmawYMubTkVGlEp0mpwcsJ6W2oarDZMkqYd24jYU6deY3odm0tbKxw8OKEx4a4BlLthsyYsuOKaPG7Fcxa9iiBfPWB9CYFiqe3HhQYQSzbdvqcspgAgegQzJY3CihAsWOXM/m0OGT40qkZXogwNKmjWyyVNe4RcOxwUOGEDmGRPmVKsiQDVEeUcS2J1FryTJLvtKAAoSFDBgw1DjixIeLEiGIlaRWbJs2yUKjLuvqgGNFnkxiNmBoUWIGEA81qHlTzi1yXaHdaLXwIKQnSmuIWcWTVGiQI4wugHkqMvDue4YLEFCwpJqTLCqjG3CaAQWSsbTJJptt1OqlklLSUKYkoorqRCRvpHHluw+zCaYTV7ixJBuZnhoqqm4ueWqsYnTB5prA1NpmGVbwUxK/W8ZicJthqMHGmms+1CYWYhhsMDIuv7MlGvA8/LAaMnf5hRlnkpllmGSMSWYZY5QJxphglklGmF0+GYYYXm6BpZZegPFlDz0UkSSUV04hRRRRVrGFF1xiceWVVmKpRZdbaqllllZYOaWUTgICACH5BAQKAAAALAAAAAAeABQAAAj/5gSaK1dQ4DmE6NItVJdOnbp169hNZNduYjty5MaNEzcuIzmDCc+hC6YMncKHENc9XKdRXLhw4mSKyxjyXDk3lBIydMhwJjhw4cDN9GhwnKU+1UKeVMhUptCgMGHK1Bhu0I8ryYqWMzcO4cGXQMF9IwtUqrhjdLjESgLrGyQoVrKAYlbwHNBvY71160Y2L8xq3rxtw1RjTg0jRHiskAPSnGBvsXT5auWqlqpRsIoJwyXLG55CWXIIiZKEBpAiyLh+E2xGBJYiqtrIuNFjBgkZSoIhCwRIDZI2iYQdMnJqnDm/vZSB4/YqRgsaIFQgiXKm2CgmUaCoiWQOnbZEfcgh/ycLk6whFzJGhDBxooSRK1WUDMGR5Ns579uOmbvL2hvrbZqgQYZCVtmEihRSEGKIL5yo4QuQuPqqHLL2oiYTOUogg5RxYhpHml8+6SMKTQ5BYpiiCAKJr22A+eONGXCBCbJvYhJnFFwKUoaMZDzUiBxsQiFkFGLCaIa1brjZRhtuuvmvEaKy8eMYqmTahhtuoEEEGyy38TKbbLzsxhlVoIrpG1eCoUkmMI+5Y5ptstEGzGyuwQYbbbbRZRoapcJFFGJguoYXUaap8xprrlHUmkTvvOTKvQQryxttgpqFFFpW2QUXW3LBpZdbaBFFFVZwqcWTW2aJxRVXbPnll2GKMShmGC7EOKMNNtyQgw485lAjVznksIOPQva4gw825qBjDjjeaMONOQICACH5BAQKAAAALAAAAAAeABQAAAj/37558/YtHLhw4sSNG0eOIUNyEcmVM3euIrpzFrlt3NatoECB4ESC+wYOWbKE4iI2LDeRXDZtMWNu49bNozebHrsRguSNZDig4xQytHbtGjaj2LRto8l0KbZNgZTdLGkQ6EFqWatpvZbNa8xs1gYZIaOMKTeC20aKjCZN2rRqcY9iw5bN6DA/WEhh+YUtFBczezQhK+gtWjRo0ahN42r0mjVn1bBZe4QkU5QyUmrEEHQT2mdWrm6VIuWJ0iJKqFphClWNUaQoRq6MYZIiCJFlOKM9e1aGRA0pk+LsuEFkh4wkVEQle2SpEBVEhJQ9wtFqI+JovYRJQ9YpxYgTHkoU/6myRxYpJ0qk5BnETVy3UIZofn4Gd5q0PylogCBhIsSKIXpAgggdYoCjsHC8uWajZ6B5RhpqeqFlCxlgUOMWVupIoYQdcrCCiBf88AgtnDZyxkFomJGChRS6SMQZbjrCBplSeECjEioEaWqjbmJs5plmmImkBkKEiTEbumDSZpNMNpIGjl+0gckpbZiJ5RNMDFHmscessaaaonIZhRuZoPlDMpiy2aZKZAIxJav7GMsqq2gqOcqxbIYZxZokvVqGmQY/+8wttw4jBZov4wJTm158KWquZf5sphlnKuUNRWRemWZTaraqxqhPknn0mlZOkWUWXHLZhRdfesHFll1kwTfFF19uqUUXYpD5ERpWmKnUmTnk+IOQQxgxRJFEIIEEk042ISUUVlSJhRZbbLnllmpjiQWWWAICACH5BAQKAAAALAAAAAAeABQAAAj/4sYNHCiQ3EFy5cqRIzhOXDiBDsNN9MYN4sRw4MBBFBfR4UNo0MJ9+zYRHMlu3CxmJOmtm7eNG02C82ZoUEVu31xu25bt2rWNOrul5OZN57eTJ1ep6cUtG89t2rJZmzaNmkahRId6M6rz0g8017hh03ZN2jVk0qRFi0by21CV21Ru9YYMTpNFgKIZi4TlSqYwz6xO04mTG9S5Q6lZs/ZN0ppHOnzEMAEjk1VqXLttU7YNWzJcojBpYkVrVKZqn9gU4QHlyIwYOIIwgxYN7rAwdLi40fSmyhYoTqpocfQMEJ4yUtSksqZnRam1cZWVqoVM15EdQWyseEKFNy0nVtg0/ynVTdu2SY/YZpNKVmq1IFmaxLih4sSPF0RY9Lihp2y1arCxprZrsLmGsWtaQQWIH34wBZhFhCDhhBtuOGEF5qiZJpoNnYGmmgOpqQaWJGh4oQrUsOHpmVRYsIEGK9aKBhpmnmlGGWcYg2YaUiixpJhmrNFwMcZOQQOaVuyYBppmmFlGGWSOUUbIWCbRxRpV1GKLLWqk8eUOatAKJBq1nnFGGWWSQcaan66hZhRcomnGw7WkCeaPaA68Jo9prKmmKhqZmbIaPwejcRlmignFkVv8BPCaS5ihRkQNbWTmT7VCisZMZjqd9FMAqwmGlkdDlIZJYHIxRphgdtmFF11ooT3lFVVMScUVVljJBZdAStHFl15okWWVU4xxhRRYXkEllVNA+UQUTlBZpRRSRhmFFE5AOTaUUCAZBA857AgIACH5BAQKAAAALAAAAAAeABQAAAj/3QQO7MaN2zaEB7Vt03Ytm7aH2bBdq0ZtmjRp2jRm48jx2jVrH69NvEaMmUiKFqNBe/Zs5EuR1SpSqyhz2ptDMy1KW/nMmTNrQWUGpVYUo7Rp1KJJQnNr2sWeLJ0xY1ZUZlGLT59Gi/ZMz4020TB2fcbLJ7Nlyixe1XrxKc9aXabgdKZrUhdEUlwtQ3asWNKiWo8i5alsGbNmbfwEKmGiggYhwY4ZM6YVWrNp0YapklTo0KVOjSw1UxQmCQ4iKFawGNGI8l+Mt94YuvIm0p0pVLhYIdMFkzFJabpEmXMsGJgau4wV4xrN1iJMwFgZwfKkhgsxXPCwciWnUZEiuaRB/4NGSlgxYiyhRXsbrQyZLzhqeFCxAwYRHTeMnFrZLK2wYIBxpqVnWILklDuS+MGSYjC5QgMWitDggzd8aoaZZIwBBphfmmnmJ2dcsWSNPs7ARJoCo+klkhZCuMOXC9NChphffOnlsAuV6eQZUJ5ZaSq0msFkBzSgQUuZZJApRhheeNnFQ2eCkcSYsmrxSRlglFHmmDFS4cS/ZJDMMJgmefnwGWTIe6aWXJxpJplZGOlEj1xImQWtMJFJ5phhfGnyTPWcKcaZZQo1DBktRwEmyST70rAXXnpRUyo3j9QSGcqOqeQXZPqarJhigqmxF1902VPPyYjZZRVTREnllFVO8TYkkVZeaWWWWFr5RBFEDkFEF1l8GYaYYIrtJRddarHFFlVM4YSVV04pRRNIEumjjSm4uEKKgAAAIfkEBAoAAAAsAAAAAB4AFAAACP/jypkjiO6cQXTp0qlbh65dO3fv3kWEB88dRIntvokLF07cx3EfyQ00Nw4dOmvT1qljuDLdyZfcvoEDNzPct47ixo0ER47coT7mzp0zh84cOYHlyGHbxq1pN6jevNHE6a1bJTnCdnIMCY5jx2rZsmHLpq2p1G5WvV3rI4TLNXAdpdby9s1qt2jW9Fq7dq3stm1mt91qcyWOH23TZE254+KUNrLaoFHba63aNbJjyzKjVnaMnj45XHRQoeIXtmvWmkWbFg2atGnNYDnCE+iRJEGXqkH6kgNJkhlYvJyos3cZs2ihQIki9EcOGSVBsFwx0yXRNDtdwjBRk+1apR+7+iL/S8aMDw4to94QmQLFBgwrXN6IAmZnkBAjx+yCC2u5GLFjhCFGGmiSeSIJKnToYQQbjvDBiCK8sIIXbrSxcJtqpJGmGGOOYeYZZ1ZJRY8YhOhDmUwWTIGHE1wwZRts9KqmNWeaEUZAY5JZppAnbOCijmCmuYYaXwjJoQZEpLmmGmoIZEYZZJAB5pdefhmmmEty4cOZaJppBkRqYsECGmymgeaZZpRZRplihAmGF15w2QWYYDQJRhhFjEGGGE2KaYYMUqiJ5hlmkkHmGGOKeZOXW3S5xRZeYhEEGGM6uSXKYQQhBAZkQFzmGEOPCaaXXXTRJZZZaKkll1l+CSaYU4a5dZJDRH5Jc5k9hyEmmF1uweXXWnyVExhibjSGGGOOZUWTZ5ZxNtQ2edFll19HCYUVVlRhJZVRRjHFlFJSYcUVRFYxRRVtV2GFFE8ygaQQQxrRIxFDFkGkkUskYcSSSii5JBJKMkGEkD7+4MNgNtAoo4ssstAiIAAh+QQECgAAACwAAAAAHgAUAAAI/96+DRwYTtxBcd4OjhtHrtzDh+YkTpSILdtFbdq2devGjZs1byEHVmMWziRClOKoVbNW7dpLiy+hZcuYEVMcbt/AgSPYM9ozaNGkTZO2khq1ZtVYTrsUqJZHbh2hcuzGjFmzZs+ARuMKLVnQZXmMjGFmDdtZYZtoatyW7BgyZFadXX3G7FhWXXykkBEUDdonJEGQqKqG0RixYsSMJUuG7O0xY8qaCUv2jNgVPG2Q9GAxRIixtcSGDRM2LLEwVXymUHHDhs2fX5uo6GCiREmlOzoAXbs47BcwS6lQIcJzhUmOGUKkhAGDZpmgLnfkfMLmbNWbZmd/+eLFRoWNPmqE/P9w4kNGDyNWBunSgwYMHGrWrmnLZq0lr124JDlqxZ2LiSeUACKEGmaY4QYjwJDjmGmEUsqoW2yRxZZcdLHlllA4OCGIWziZIoQTeujAB1eggeYZoaahZpppYpHFRVxsmYUKEjzoApZklnGmF0poCOIRZ5pxJkgUu2qlFVlkmSXJS8oYwRZfSivmGEpSkOWZZZJRRstmmHHmGWdYaeWVV5KkRZdGUrmjE158OeUROSRBBZlijDHmsWOUYWYZVFTx0xUlbaHlEmL+oGUXUH645BFSihkGscPe0jKZU0pBJRVVXInFllR2ASYWWhihxJdddgnmt2CAAebRYR5DhZRUXHFhZRYKfwkmmF5K2YQ0O30DJpg64ZoSrkwouUQSSyzRRJRSYLHFlUZYUSWVWEfxhJRVUGEFlVE4+cQTT+ZoQw9ACmkEEkk08eQTTiaxpBFHMKFEk0gSQUSRRR5RJBBA/AgkIAA7";
const buf = Uint8Array.from(atob(testGifB64), (c) => c.charCodeAt(0));
const at = Module._malloc(buf.length);
Module.HEAP8.set(buf, at);
Module._read_buffer(at, buf.length);
Module._play();
Enter fullscreen mode Exit fullscreen mode

如果幸运的话，你应该会看到一匹解码的、移动的 ASCII 艺术马🐎💨在你的控制台中播放：

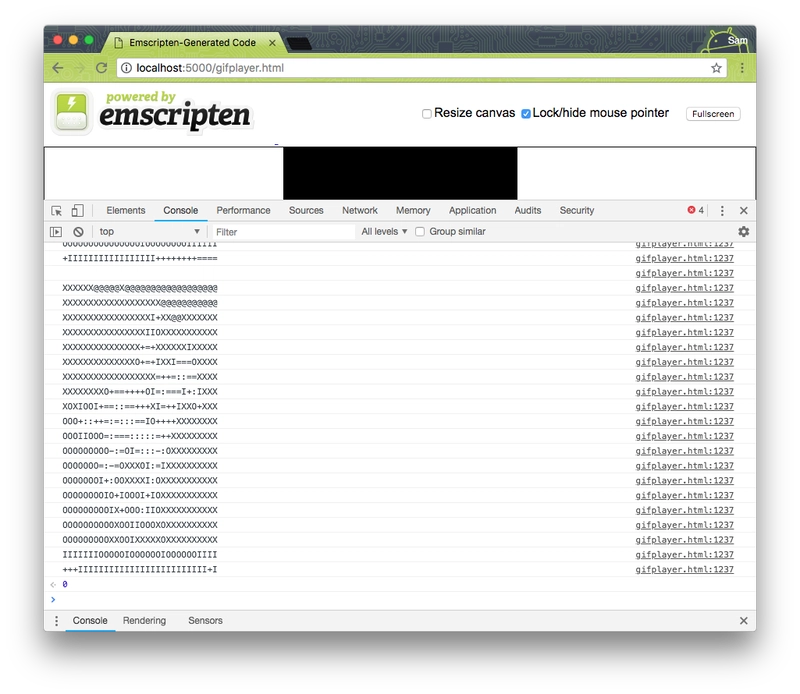

控制台中的 ASCII 艺术马

恭喜！这时，我奖励自己一个甜甜圈。你也应该这样做。🍩

第三步：不要显示到屏幕上

现在，我们只是将 ASCII 图像播放到控制台。Emscripten 甚至usleep用一个繁忙循环来实现这个方法：GIF 播放器会在帧之间暂停，实际上只是循环播放以阻止浏览器继续播放。真恶心！

与其这样，不如让我们访问实际的帧。首先，在play()方法内部，注释掉所有与睡眠和屏幕显示相关的代码：

#ifdef _POSIX_TIMERS
    /*
    if (started) {
      ...
    }
    */
#endif

    //ignore_return_value(write(stdout_fd, print_buffer, n));
Enter fullscreen mode Exit fullscreen mode

现在，我们要使用EM_ASM_宏，它允许我们在 C 代码中内联调用 JavaScript。这纯粹是魔术，它将宏中的字符串放入 Emscripten 的输出 JS 助手中。因此，该方法的其余部分现在应该是：

    // .. continued from above

    cumulative_delay_micros +=
        (1000 * wuffs_base__image_buffer__duration(&ib)) /
        WUFFS_BASE__FLICKS_PER_MILLISECOND;

    // .. add this bit
    EM_ASM_({
      onframe($0, $1, $2);
    }, print_buffer, n, cumulative_delay_micros);

    // TODO: should a zero duration mean to show this frame forever?
  }
  return NULL;
}
Enter fullscreen mode Exit fullscreen mode

最后，请确保在文件顶部添加 Emscripten 标头，因为现在我们正在使用新的宏：

#include <emscripten.h>
Enter fullscreen mode Exit fullscreen mode

现在您可以使用与以前相同的命令重新编译：

emcc -s WASM=1 -s TOTAL_MEMORY=128MB \
    -s EXPORTED_FUNCTIONS="['_read_buffer','_play']" \
    -o gifplayer.html \
    example/gifplayer/gifplayer.c
Enter fullscreen mode Exit fullscreen mode

然后重新加载页面。现在，再次运行我们的辅助 blob，但这次提供一个onframe方法：

const frames = [];
const decoder = new TextDecoder();
function onframe(buf, len, micros) {
  const s = decoder.decode(Module.HEAP8.slice(buf, buf + len));
  frames.push({s, ms: micros / 1000});
}

const testGifB64 = "R0lGODlhHgAUAIcAAAAAAAEBAQICAgMDAwQEBAUFBQYGBgcHBwgICAkJCQoKCgsLCwwMDA0NDQ4ODg8PDxAQEBERERISEhMTExQUFBUVFRYWFhcXFxgYGBkZGRoaGhsbGxwcHB0dHR4eHh8fHyAgICEhISIiIiMjIyQkJCUlJSYmJicnJygoKCkpKSoqKisrKywsLC0tLS4uLi8vLzAwMDExMTIyMjMzMzQ0NDU1NTY2Njc3Nzg4ODk5OTo6Ojs7Ozw8PD09PT4+Pj8/P0BAQEFBQUJCQkNDQ0REREVFRUZGRkdHR0hISElJSUpKSktLS0xMTE1NTU5OTk9PT1BQUFFRUVJSUlNTU1RUVFVVVVZWVldXV1hYWFlZWVpaWltbW1xcXF1dXV5eXl9fX2BgYGFhYWJiYmNjY2RkZGVlZWZmZmdnZ2hoaGlpaWpqamtra2xsbG1tbW5ubm9vb3BwcHFxcXJycnNzc3R0dHV1dXZ2dnd3d3h4eHl5eXp6ent7e3x8fH19fX5+fn9/f4CAgIGBgYKCgoODg4SEhIWFhYaGhoeHh4iIiImJiYqKiouLi4yMjI2NjY6Ojo+Pj5CQkJGRkZKSkpOTk5SUlJWVlZaWlpeXl5iYmJmZmZqampubm5ycnJ2dnZ6enp+fn6CgoKGhoaKioqOjo6SkpKWlpaampqenp6ioqKmpqaqqqqurq6ysrK2tra6urq+vr7CwsLGxsbKysrOzs7S0tLW1tba2tre3t7i4uLm5ubq6uru7u7y8vL29vb6+vr+/v8DAwMHBwcLCwsPDw8TExMXFxcbGxsfHx8jIyMnJycrKysvLy8zMzM3Nzc7Ozs/Pz9DQ0NHR0dLS0tPT09TU1NXV1dbW1tfX19jY2NnZ2dra2tvb29zc3N3d3d7e3t/f3+Dg4OHh4eLi4uPj4+Tk5OXl5ebm5ufn5+jo6Onp6erq6uvr6+zs7O3t7e7u7u/v7/Dw8PHx8fLy8vPz8/T09PX19fb29vf39/j4+Pn5+fr6+vv7+/z8/P39/f7+/v///yH/C05FVFNDQVBFMi4wAwEAAAAh+QQECgAAACwAAAAAHgAUAAAI/+UEmjt3Dl1BhOjSpUOnUN06dQshqlPX0Bw4jOHEjSNHbtzHjuXMlSN3DZs5c+QECuT4UZu3b94yhqNJc+NHcIcGfazZkya2bdy6dcP47Ru4cBiRfhMVJ1jRbtZgHsWITdu2od2mygRntJsiJ4jIdW22yc2uoUa9UTOZTdvVbUG5zd0mTA4UP7myxZqjg4iQXdq4bdNWzRo2bNniXs0mbNgyasu2gTsmxU2TIDxs6IjSLO42w9ee7WK2LNquNitc1Fixw8yuXWOYNImi5pcmJHGsarNmMlSKFFXI1MnB4keSKGHQyKGmiNAZO87GhdM2a7A2aoZpkRnGjVqeFzGGtP84kaNGGlRv1GxxJO6ouHDbsmHLbk1wTG7EmJhQ8WLIiRNmOMEFLO6AqRtuvOlGm2uuqS8boebyZhcaXkiEG1SsWEGGFXy4JZwFrWrwmmqmoeYwt+LCpYtkxFAGHHHECYYFFkQJ5xtuGBzRsGimQfEzakrhJAmhjhqGDFoq+aYb+UwaEZtoTkQMrsmeKQSTT6jhhg5nxLGFmcGyyeaa+RDrsZoG3XpLpmNoaWSPSy4ppZRbctSmzPkajEYaNK1RUzCYwPFGGm2o+oaw+ayxpj5roPHRmmrUVKwbrwD1RkH5EiXxxGpouUWXX3whhplmkhmGmGWWAQaYYpZpphlkllEx5plmjFGGGF10uQULNdoAZJBFKInkkUs2QcWVWVZZpRRYWFGFlFA40UQSRQCxFpCAAAAh+QQECgAAACwAAAAAHgAUAAAI/+PKmTt3Dl06hOgKoiOYEGE6dOoeqouI7lu4ceLIDSRYjhy5jOE+Gks1DmRGkB5BbvsGDly4cOLGZRQX7pu3bt62JRrjDVzLb9+6vfx5bZu2bdy65Qy6dFs2a8XczGnWbdu2atCwaVPajZs1bWG5el3K7em1X0hmiDGbLdmdJpaqXQ1bLZu2bHe57eUWFpu1ZbAwcaJkqxCXFjBaULoWNpu0atasXcOWN9uzVq5o4YpVDByxI0+KxEiRgoULXFu1QZtGTdkuYcaixboyY0iPFzl4pHrmR0mYJnCIqXJipVnYaNSmsVlRxEoiND5m7OjxZEoXPtIM9UkzRpg3m7Aaa/9LTq3Vo2mA79CwUQPHCxgytizagkZMInDcvN3Uhg3bs2mkoaYybK4RBowYYIhhBhhYiOEEF4rAIhpusLlqm7+sYSaa5P6qhppruJmkBiOkmcQHFVx4AYdVutGmGseukUyZZpyZ5kMcp0FDFSp84maWE4Z4wRe/8soQsGegEVC5G4H5AxMtcMmGm2qS6CaaU1SBirICr7lmmWfClGbMMa3pRhpM4oBkmmAw8cabY2jJ0MsukWHGmWeiGROaaKapzBtcFglDkWGw6UUUbaypRkbJqqmGGGXuzBOaJJOzC6ldhunmmEKvycpRR6mhZphklmmmGT2jgUZJaibzMy8vPZ1PphnlRA1QlVl2ASYYW3D5xRZdhhEGGFpo+cUYZIwh5phinBEGmWWSUZYYJdK4g49ECDEEkkk2AcWTUlqJhZRUXFkllVNI8YQwTzYhjJGAAAAh+QQECgAAACwAAAAAHgAUAAAI/9++mUOnTh26de7WqWv3rqE7du8kMoQXr6I7eO/cXcMWjly5cuPKpUNH0CA7dum63Uo3bt3DdyjZqYNWbRu3b968gRtHLtw4c+ZIkvMkpOM5dezWLUSH7pwzadi0bbu57Rs4cOHEkTOXbRCXXefCEVyXTl26c2mfRavGEVu2bd3ACQRHbhqXGEq8nfO27RaqXOjSBS3nDJq0aRzhygWnE1wyT4ISfRp2qAgMKFJ2lSxHrpmyZs+kUWs7ddiwYst4qYpm7MUVGChOzBjypFpnz8yaJYulSxi1Y246lFgRIoULTLSWrBiSwgksRUECbS237JkzNxs+iBhjxQUJGjKKHP+hcodXFjhTsNBqaYzOtc7JnDFDxeOVLVuAVKhI0QKFjB6mCGSLLJzo45ym0kmHHAaNOcY6ZNzaJYgVSoDhBBRmgMGDFHKQIhlzzgnxHAbHOSYZZZSpZhrStMFmERZiiKUMEkbgcAVGQMKNHHF61I0ZZ6KRJhpqrulGnDFi0KYcalQRooQQtpDFG3LGsTKcuZoJDZppWKymmmyeeUEHXrL5hRtRLhnHGl9UwRIrunQj0hqO2rJmm2nssGMPWHipphBxwoHmGHEEEsibbgwjjc5rurwmm6ssgaUXWFDZ5BtuWrmmsW6+6aabbZRxZi3SrqGGGmuw4QYccU7JBCdxuolyBpZwPOWGG6pCZYYZLk+dRppqrIGLTmB24aYbbZ6Ry5tbt9HmWU46keQSWGa5ZZdcdOFFF1tQkaUYYHwhRphYiHEmmWOOMYaYYYgBg4wz0iBDjTXUcGONNvLwYxFLJGnEEEQGYaSSTCx5JJFB+jiEkYAAACH5BAQKAAAALAAAAAAeABQAAAj/38KBCyfOYMFx4saNI1eOHDlxDx8qDLcQ3DdvGbt1w+iNWzdv3y4SBAeOGq9vIrttY6kNG7ZsLLNl01YzG8xt3D5u7OYJhzJt3LBZo1aU2rRpMK8pHWrtGs2a26ZREvNJ29Nr0p5JkwbNa82XQ69Vo1YtGzeW0dzcMLMtW7VrzXixghbNbjSw16xVI1v2WktlmNiUSRWME5kVJVScqhsNWt5rRclOswbT2jFj2H4JOXNDiJEULGQUK0st7LXI046yKtNljBY4XWy54nIjSZEngpaIMHSUGuprwrQ4ucLIjwwTSoo4sTKlELM5cLh06ZSNmSIYwlSjrhasyaFaqiit/wiBg0cKIl/8rIpTx0kabW65CTsqrey0aL74UkPlQQSGFFBAgQchblDCiS1a0eYtmKaRBilqvHKQK2kmKUEEF9gYYQQXTmgiiDR8g0aaaJxpxhm7nHHmGRVXhCYTE1CwyxZLqshhiCcYmUWaZphxZplllOlxGWaYaYZIIKNJwwZijnLwFDaI4cWRW4BMJhlllnnmGWaIPJKZLJ3Zow4+/qgEmUagMSyaZ0RxhhlksEQGmmeCVOZOZZA5JplKPoHGmV4YCUYRV7aSZhNohgTSKziVSQaZZTA75hlEggHzmWT2o5OVEodMphlQHdXzmGKIKcbROixtZpgJvWqGzlGP8UzFl1t62YWXXW6xBRZaYIHFET1kgeWTW2qhpRZbeOFlFlVUQSUVUSSphBNKHjEEkD78yCOQRCRBhJA/HHmkEkkSOaQRRfRQowsvsggIACH5BAQKAAAALAAAAAAeABQAAAj/5s6dQ0cQXcGD6RSaU6fwYEFz5ciNE9ctG7Zw4sZt3Khxo0Ry3MiRC7eLWzhw37px25atWjRo3r6Bo/ntm0ybNMFhsymsAquV2a5dq0btWTNm3bwt9dZtJTduSm9i47YKCZ9r2oZaKyrNGbNl25w6lek0alNv1BRdoJGs2zZs1qQli+YVbNSxTbnpdbpNGqouefZYU5bJDY8XfaI5a9YM79ixUKNmi6YMHLctZCwwWIBgwIFZ0J492yZZmzao25pRKsRoESZArmIJ2VCCgYYYNAbcEU0a6rQqPqY44lSkBA0bOJI0KfMsjJYeHaooS8YFhDBmzFhyyzblUjFSpmh0/7jRYgaNKnhiOZHyYkWxpd0A8VoW9vQ2a+CawuoAQkQMDzyAIYgMfDjBhjy82UasbqDJ7ppsstFmLG2qacKDDVawYoQQSIgABhgyuCUba6zB5ppmlknGGggl3OY0bVRZwYgagJHmF1IMgcEEGvQIZpppqJlGGWWOqWaoa7CJUJtspBGiFUZEycapb7ZZ5hY87ADEGWicQQaZYqph8cQls6GEj214EcOZBaEqsZRsfgGly2SSQaZEE5VkEps0mnGKmUg6gabCUjJh8RpTZmEGmWPCFHOoi04kBRpuUKsGGUeMUZK7oqrBRBljhhGGGmrEfFTMZlTBBptqklGyKBa5klImmmeOAcYXX4ARps5lFk1mmGMcSUUYWkbxhZdbatlFF150qUWWWErR5JJLJqHElFJQKYWUUjwpJZdXTCEFlU48yUQSRxxhxA84upAiiCB2sCEgACH5BAQKAAAALAAAAAAeABQAAAj/48oNNGfu3MFz5sahY5jO4UN16tJFlJgOnTdx4sJl5KixG7ly5MaJlEUNJDmUA0OO2/YN3DeYLsG9zAYunE1wyVCMCnfT5TdvM79xExoTKNBtQr21UmIoW8xu3bZl8+atm7aoWbtx47oNW9Vuj0jIOAVuGzdt1KxBs6aNW7dsXLlGRTs1rtRZbkBFGfbMWKEpZWzY0rbN69u3W7cVtnbNMLZdLi3l4GKCRYwUJbZg06bNMbdt1651xkZNVSZTqVRtCtXLSxEdRHzwePJixa3Ojrc9CzIiyJ9JSVCcMIFCRo8qyvbYsQLECSxriW4k6mwtW7ZrTTLRAvVJxAcaLHbI/0jyhlaXGUOAiConkJSXttY5YwO3tRGFDyhMeODAgkgJF4SQ4QeMbBLnm8WqwQYbqqTKZpIMPAghBzZQEOFCHIawIY1wwLJJG2yiaQybx6wpRQMQXiBjnG6MeWUTRJIgoocwiulsm25Ei4aaazjLxhppDGlhFVWycEmckUYyJxkwMLnGGs6sqWYa667TJhs+rCiGHGSogKmnnjICxxNRNIEyG2yuoYbB67AbwxpxwLlGjGS8kcmmcGJxRpxiJOGsxzXTZPORqqbS5hBhuKlqUWZe8kYZR6bBxpppREsTTUjO2mYacLJp5BXQzlJUMc+oUYuXYpIZRpljimlkFV+IkT4Fl1JYQSQXXnrhBZdehhlGGGCC8WUXXMjAQw4/ECHkEFAkQWSRSSbZxJJKCvFjDz/sqCOPO+IogwwutrAiIAAh+QQECgAAACwAAAAAHgAUAAAI/9/CiQs3UFy3ceTIlTPX0OG5c+giQjznkNw2bt0yevuWDRy4guLEjUvoTRa4cikVkiNIEBu2bNm2YbzWzZu3bt8+Frz149g4kQXDfbvpzZq1a9eyadNWjVvGjeC8qdICiuBHot64Ydx2tFo1azCpxWS6rds2RiN64AqHU6O2bUtnfv169Nq0pDCZVhOlhNSVXdqgbbLSZQ8rbHPBWquLF2nMbNGWecvmycOZCB9KcIBQhNpcamCZRasGrVo0XLF+8fKV6dinLkFeiHBh4kIFCqyyXaM2jVqsERxcgAk05AUNEx0ydJhjDQuWJR5sWDrmZkIimNV64/rCCtcwOC42dP8AkeHBg0HOWJTQcEJTwWx4jljL1luatGrYrP2qICHDBwwwmACBDFwQYYQMVogGp2+i+UWbbKrxbRrtpmlFwAxQkEOKDzIAoYfNPCBjmqVyAgdCaqSJBppoVixFAw8wQMEZcKj5ZRVOHgEkCAuyYIOaxLjRBhtqUnwGmmd6kcIOY1BghCm3ivImk0AowW8xa3yrRkVhhhBFm2BUSOYouGbK5qVsGLGjxfvuC623aBDJZRprGnEkwmrOxOYaCSm8hgxenjmSRRVVrCUUaZCZRphJJKTmGmtSdMYZaO7bRRFblJm0GWgofcaPI4/BL5RdpDEtxWaWaeYZaR6NppJWnGlNpplffPElmFhkeYUWXGzRxQtGWLklllhaecWVVmTpJRdecpGFFVZa+WOQQgZZ5BA9pmXEEk0UCQSRQOBAA4sw3oAjjS60WMIIIHzoISAAIfkEBAoAAAAsAAAAAB4AFAAACP/hxpEjWM6cuXPo0KlTx87hOoft3E10B88ivHfvvIHj+I1jOHHjyhlUiO4cN2Dp0kFkJ7FlO3bbtmmbSbObN4/gxJUjOM7UEnDmVKpcx1ClNWvVsCG9to3bTZwgw7EioosnuXMIEWY9dw0pUqXZtnX75o3st0wkdggbJy5kwZEHsV3zOo1atWvYaD7tFo2Qj1xyaH1b5onNGVm/Cia9Vk1aNLt5s+21y43brSJZZjRxsoOFGYHipo1OlisXL2TSnhUL5swZslbW9rQJo8RKlyUrbvwYppPatGiYJky4YARPixAoSKQQ0cLTLy1r3jC5MuqaoxuiwoX7HU0XHlvKmjn/CbEhw4kZNm6MSvVDSI0morJ+Q5RHZzXH1LJZk2bKAoYPKsiAgwxMgEEIHGb44YdpyDEIG2C2S2oaaaiJZpk+MNiAhCg2GQOEEDpgwYYabpCjm3EGGokjah6DBhpmfvnBAw5EQAaccLRJBhZNVqlFiirWiESaFMcB6bFmnGlGlickWUOGWrrZ6yaQyEnmEXK8WUUncL4J5xlonFlmmCdkeYMMZLrZjy69bvpmHEquAUeYaL4pizBmlkHGD1+USUOauaq5ixqksJmsr1K4mQYYyyxTRhlc/IDlGGMaARMaMCmUxi5r6OqGFmmgOUYbbAw95phTfilmGGIo6VMZZmB8WkaaTfHLyxpNriE1r2tA2eSRQjz5pJNEqsBEFFFIWUSTU2ihpRZbctEll1M+waWWWGR5JQwvsPhiCiuwMIOOMdA4gw48+PCjjzzssCOQQAjxo4412oAjjjoCAgAh+QQECgAAACwAAAAAHgAUAAAI/+EEhhNXsOA4hOPILWSIkFzCceLCgaNYseJAggYLNkOmsaDAbyG9eQsZ0iI4jAIZ5UkpENzIbt1GljT5jeJEcN9KgSl2Eee3mNxkkqRZ0iKnEkaEmawYMubTkVGlEp0mpwcsJ6W2oarDZMkqYd24jYU6deY3odm0tbKxw8OKEx4a4BlLthsyYsuOKaPG7Fcxa9iiBfPWB9CYFiqe3HhQYQSzbdvqcspgAgegQzJY3CihAsWOXM/m0OGT40qkZXogwNKmjWyyVNe4RcOxwUOGEDmGRPmVKsiQDVEeUcS2J1FryTJLvtKAAoSFDBgw1DjixIeLEiGIlaRWbJs2yUKjLuvqgGNFnkxiNmBoUWIGEA81qHlTzi1yXaHdaLXwIKQnSmuIWcWTVGiQI4wugHkqMvDue4YLEFCwpJqTLCqjG3CaAQWSsbTJJptt1OqlklLSUKYkoorqRCRvpHHluw+zCaYTV7ixJBuZnhoqqm4ueWqsYnTB5prA1NpmGVbwUxK/W8ZicJthqMHGmms+1CYWYhhsMDIuv7MlGvA8/LAaMnf5hRlnkpllmGSMSWYZY5QJxphglklGmF0+GYYYXm6BpZZegPFlDz0UkSSUV04hRRRRVrGFF1xiceWVVmKpRZdbaqllllZYOaWUTgICACH5BAQKAAAALAAAAAAeABQAAAj/5gSaK1dQ4DmE6NItVJdOnbp169hNZNduYjty5MaNEzcuIzmDCc+hC6YMncKHENc9XKdRXLhw4mSKyxjyXDk3lBIydMhwJjhw4cDN9GhwnKU+1UKeVMhUptCgMGHK1Bhu0I8ryYqWMzcO4cGXQMF9IwtUqrhjdLjESgLrGyQoVrKAYlbwHNBvY71160Y2L8xq3rxtw1RjTg0jRHiskAPSnGBvsXT5auWqlqpRsIoJwyXLG55CWXIIiZKEBpAiyLh+E2xGBJYiqtrIuNFjBgkZSoIhCwRIDZI2iYQdMnJqnDm/vZSB4/YqRgsaIFQgiXKm2CgmUaCoiWQOnbZEfcgh/ycLk6whFzJGhDBxooSRK1WUDMGR5Ns579uOmbvL2hvrbZqgQYZCVtmEihRSEGKIL5yo4QuQuPqqHLL2oiYTOUogg5RxYhpHml8+6SMKTQ5BYpiiCAKJr22A+eONGXCBCbJvYhJnFFwKUoaMZDzUiBxsQiFkFGLCaIa1brjZRhtuuvmvEaKy8eMYqmTahhtuoEEEGyy38TKbbLzsxhlVoIrpG1eCoUkmMI+5Y5ptstEGzGyuwQYbbbbRZRoapcJFFGJguoYXUaap8xprrlHUmkTvvOTKvQQryxttgpqFFFpW2QUXW3LBpZdbaBFFFVZwqcWTW2aJxRVXbPnll2GKMShmGC7EOKMNNtyQgw485lAjVznksIOPQva4gw825qBjDjjeaMONOQICACH5BAQKAAAALAAAAAAeABQAAAj/37558/YtHLhw4sSNG0eOIUNyEcmVM3euIrpzFrlt3NatoECB4ESC+wYOWbKE4iI2LDeRXDZtMWNu49bNozebHrsRguSNZDig4xQytHbtGjaj2LRto8l0KbZNgZTdLGkQ6EFqWatpvZbNa8xs1gYZIaOMKTeC20aKjCZN2rRqcY9iw5bN6DA/WEhh+YUtFBczezQhK+gtWjRo0ahN42r0mjVn1bBZe4QkU5QyUmrEEHQT2mdWrm6VIuWJ0iJKqFphClWNUaQoRq6MYZIiCJFlOKM9e1aGRA0pk+LsuEFkh4wkVEQle2SpEBVEhJQ9wtFqI+JovYRJQ9YpxYgTHkoU/6myRxYpJ0qk5BnETVy3UIZofn4Gd5q0PylogCBhIsSKIXpAgggdYoCjsHC8uWajZ6B5RhpqeqFlCxlgUOMWVupIoYQdcrCCiBf88AgtnDZyxkFomJGChRS6SMQZbjrCBplSeECjEioEaWqjbmJs5plmmImkBkKEiTEbumDSZpNMNpIGjl+0gckpbZiJ5RNMDFHmscessaaaonIZhRuZoPlDMpiy2aZKZAIxJav7GMsqq2gqOcqxbIYZxZokvVqGmQY/+8wttw4jBZov4wJTm158KWquZf5sphlnKuUNRWRemWZTaraqxqhPknn0mlZOkWUWXHLZhRdfesHFll1kwTfFF19uqUUXYpD5ERpWmKnUmTnk+IOQQxgxRJFEIIEEk042ISUUVlSJhRZbbLnllmpjiQWWWAICACH5BAQKAAAALAAAAAAeABQAAAj/4sYNHCiQ3EFy5cqRIzhOXDiBDsNN9MYN4sRw4MBBFBfR4UNo0MJ9+zYRHMlu3CxmJOmtm7eNG02C82ZoUEVu31xu25bt2rWNOrul5OZN57eTJ1ep6cUtG89t2rJZmzaNmkahRId6M6rz0g8017hh03ZN2jVk0qRFi0by21CV21Ru9YYMTpNFgKIZi4TlSqYwz6xO04mTG9S5Q6lZs/ZN0ppHOnzEMAEjk1VqXLttU7YNWzJcojBpYkVrVKZqn9gU4QHlyIwYOIIwgxYN7rAwdLi40fSmyhYoTqpocfQMEJ4yUtSksqZnRam1cZWVqoVM15EdQWyseEKFNy0nVtg0/ynVTdu2SY/YZpNKVmq1IFmaxLih4sSPF0RY9Lihp2y1arCxprZrsLmGsWtaQQWIH34wBZhFhCDhhBtuOGEF5qiZJpoNnYGmmgOpqQaWJGh4oQrUsOHpmVRYsIEGK9aKBhpmnmlGGWcYg2YaUiixpJhmrNFwMcZOQQOaVuyYBppmmFlGGWSOUUbIWCbRxRpV1GKLLWqk8eUOatAKJBq1nnFGGWWSQcaan66hZhRcomnGw7WkCeaPaA68Jo9prKmmKhqZmbIaPwejcRlmignFkVv8BPCaS5ihRkQNbWTmT7VCisZMZjqd9FMAqwmGlkdDlIZJYHIxRphgdtmFF11ooT3lFVVMScUVVljJBZdAStHFl15okWWVU4xxhRRYXkEllVNA+UQUTlBZpRRSRhmFFE5AOTaUUCAZBA857AgIACH5BAQKAAAALAAAAAAeABQAAAj/3QQO7MaN2zaEB7Vt03Ytm7aH2bBdq0ZtmjRp2jRm48jx2jVrH69NvEaMmUiKFqNBe/Zs5EuR1SpSqyhz2ptDMy1KW/nMmTNrQWUGpVYUo7Rp1KJJQnNr2sWeLJ0xY1ZUZlGLT59Gi/ZMz4020TB2fcbLJ7Nlyixe1XrxKc9aXabgdKZrUhdEUlwtQ3asWNKiWo8i5alsGbNmbfwEKmGiggYhwY4ZM6YVWrNp0YapklTo0KVOjSw1UxQmCQ4iKFawGNGI8l+Mt94YuvIm0p0pVLhYIdMFkzFJabpEmXMsGJgau4wV4xrN1iJMwFgZwfKkhgsxXPCwciWnUZEiuaRB/4NGSlgxYiyhRXsbrQyZLzhqeFCxAwYRHTeMnFrZLK2wYIBxpqVnWILklDuS+MGSYjC5QgMWitDggzd8aoaZZIwBBphfmmnmJ2dcsWSNPs7ARJoCo+klkhZCuMOXC9NChphffOnlsAuV6eQZUJ5ZaSq0msFkBzSgQUuZZJApRhheeNnFQ2eCkcSYsmrxSRlglFHmmDFS4cS/ZJDMMJgmefnwGWTIe6aWXJxpJplZGOlEj1xImQWtMJFJ5phhfGnyTPWcKcaZZQo1DBktRwEmyST70rAXXnpRUyo3j9QSGcqOqeQXZPqarJhigqmxF1902VPPyYjZZRVTREnllFVO8TYkkVZeaWWWWFr5RBFEDkFEF1l8GYaYYIrtJRddarHFFlVM4YSVV04pRRNIEumjjSm4uEKKgAAAIfkEBAoAAAAsAAAAAB4AFAAACP/jypkjiO6cQXTp0qlbh65dO3fv3kWEB88dRIntvokLF07cx3EfyQ00Nw4dOmvT1qljuDLdyZfcvoEDNzPct47ixo0ER47coT7mzp0zh84cOYHlyGHbxq1pN6jevNHE6a1bJTnCdnIMCY5jx2rZsmHLpq2p1G5WvV3rI4TLNXAdpdby9s1qt2jW9Fq7dq3stm1mt91qcyWOH23TZE254+KUNrLaoFHba63aNbJjyzKjVnaMnj45XHRQoeIXtmvWmkWbFg2atGnNYDnCE+iRJEGXqkH6kgNJkhlYvJyos3cZs2ihQIki9EcOGSVBsFwx0yXRNDtdwjBRk+1apR+7+iL/S8aMDw4to94QmQLFBgwrXN6IAmZnkBAjx+yCC2u5GLFjhCFGGmiSeSIJKnToYQQbjvDBiCK8sIIXbrSxcJtqpJGmGGOOYeYZZ1ZJRY8YhOhDmUwWTIGHE1wwZRts9KqmNWeaEUZAY5JZppAnbOCijmCmuYYaXwjJoQZEpLmmGmoIZEYZZJAB5pdefhmmmEty4cOZaJppBkRqYsECGmymgeaZZpRZRplihAmGF15w2QWYYDQJRhhFjEGGGE2KaYYMUqiJ5hlmkkHmGGOKeZOXW3S5xRZeYhEEGGM6uSXKYQQhBAZkQFzmGEOPCaaXXXTRJZZZaKkll1l+CSaYU4a5dZJDRH5Jc5k9hyEmmF1uweXXWnyVExhibjSGGGOOZUWTZ5ZxNtQ2edFll19HCYUVVlRhJZVRRjHFlFJSYcUVRFYxRRVtV2GFFE8ygaQQQxrRIxFDFkGkkUskYcSSSii5JBJKMkGEkD7+4MNgNtAoo4ssstAiIAAh+QQECgAAACwAAAAAHgAUAAAI/96+DRwYTtxBcd4OjhtHrtzDh+YkTpSILdtFbdq2devGjZs1byEHVmMWziRClOKoVbNW7dpLiy+hZcuYEVMcbt/AgSPYM9ozaNGkTZO2khq1ZtVYTrsUqJZHbh2hcuzGjFmzZs+ARuMKLVnQZXmMjGFmDdtZYZtoatyW7BgyZFadXX3G7FhWXXykkBEUDdonJEGQqKqG0RixYsSMJUuG7O0xY8qaCUv2jNgVPG2Q9GAxRIixtcSGDRM2LLEwVXymUHHDhs2fX5uo6GCiREmlOzoAXbs47BcwS6lQIcJzhUmOGUKkhAGDZpmgLnfkfMLmbNWbZmd/+eLFRoWNPmqE/P9w4kNGDyNWBunSgwYMHGrWrmnLZq0lr124JDlqxZ2LiSeUACKEGmaY4QYjwJDjmGmEUsqoW2yRxZZcdLHlllA4OCGIWziZIoQTeujAB1eggeYZoaahZpppYpHFRVxsmYUKEjzoApZklnGmF0poCOIRZ5pxJkgUu2qlFVlkmSXJS8oYwRZfSivmGEpSkOWZZZJRRstmmHHmGWdYaeWVV5KkRZdGUrmjE158OeUROSRBBZlijDHmsWOUYWYZVFTx0xUlbaHlEmL+oGUXUH645BFSihkGscPe0jKZU0pBJRVVXInFllR2ASYWWhihxJdddgnmt2CAAebRYR5DhZRUXHFhZRYKfwkmmF5K2YQ0O30DJpg64ZoSrkwouUQSSyzRRJRSYLHFlUZYUSWVWEfxhJRVUGEFlVE4+cQTT+ZoQw9ACmkEEkk08eQTTiaxpBFHMKFEk0gSQUSRRR5RJBBA/AgkIAA7";
const buf = Uint8Array.from(atob(testGifB64), (c) => c.charCodeAt(0));
const at = Module._malloc(buf.length);
Module.HEAP8.set(buf, at);
Module._read_buffer(at, buf.length);
Module._play();
Enter fullscreen mode Exit fullscreen mode

运行上述代码后，请务必记录frames对象，如下所示。

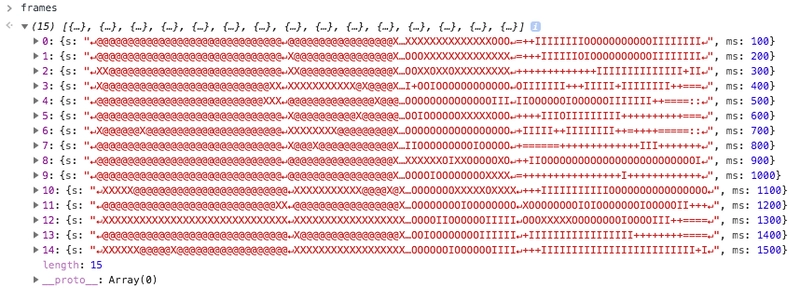

JavaScript 控制台中的框架

呼！现在，您可以修改它们、打印它们，或者在闲暇时使用它们。这肯定不完美，因为您需要将其添加onframe到全局作用域中（！）。但是，Emscripten 的辅助库在这方面已经很差了——它们已经将内容添加Module到您的窗口中了。

第四步：获取图像字节

我们之前修复的 demo 实际上只是将 ASCII 图像渲染到控制台。让我们简化一下代码，直接获取 GIF 的原始字节。

让我们更新gifplayer.c以向 JavaScript 方法传递更多不同的参数onframe：

// update the forward declaration at top
extern void onframe(uint32_t *, uint32_t, uint32_t, uint32_t);

// -- removed for brevity --

    // update EM_ASM_
    EM_ASM_({
      onframe($0, $1, $2, $3);
    }, dst_buffer, width, height, cumulative_delay_micros);
Enter fullscreen mode Exit fullscreen mode

现在，重新编译代码 - 只需使用与之前相同的命令，在终端中点击⬆️。

在您的浏览器中，重新加载并运行此代码片段以生成ImageData足以为我们渲染的实例：

const frames = [];
const decoder = new TextDecoder();
function onframe(buf, width, height, micros) {
  const len = width * height;
  const buf = new Uint32Array(len);
  buf.set(Module.HEAPU32.subarray(buf, buf + len))
  const clamped = new Uint8ClampedArray(buf.buffer);
  const imageData = new ImageData(clamped, width, height);
  frames.push({imageData, ms: micros / 1000});
}

const testGifB64 = "R0lGODlhHgAUAIcAAAAAAAEBAQICAgMDAwQEBAUFBQYGBgcHBwgICAkJCQoKCgsLCwwMDA0NDQ4ODg8PDxAQEBERERISEhMTExQUFBUVFRYWFhcXFxgYGBkZGRoaGhsbGxwcHB0dHR4eHh8fHyAgICEhISIiIiMjIyQkJCUlJSYmJicnJygoKCkpKSoqKisrKywsLC0tLS4uLi8vLzAwMDExMTIyMjMzMzQ0NDU1NTY2Njc3Nzg4ODk5OTo6Ojs7Ozw8PD09PT4+Pj8/P0BAQEFBQUJCQkNDQ0REREVFRUZGRkdHR0hISElJSUpKSktLS0xMTE1NTU5OTk9PT1BQUFFRUVJSUlNTU1RUVFVVVVZWVldXV1hYWFlZWVpaWltbW1xcXF1dXV5eXl9fX2BgYGFhYWJiYmNjY2RkZGVlZWZmZmdnZ2hoaGlpaWpqamtra2xsbG1tbW5ubm9vb3BwcHFxcXJycnNzc3R0dHV1dXZ2dnd3d3h4eHl5eXp6ent7e3x8fH19fX5+fn9/f4CAgIGBgYKCgoODg4SEhIWFhYaGhoeHh4iIiImJiYqKiouLi4yMjI2NjY6Ojo+Pj5CQkJGRkZKSkpOTk5SUlJWVlZaWlpeXl5iYmJmZmZqampubm5ycnJ2dnZ6enp+fn6CgoKGhoaKioqOjo6SkpKWlpaampqenp6ioqKmpqaqqqqurq6ysrK2tra6urq+vr7CwsLGxsbKysrOzs7S0tLW1tba2tre3t7i4uLm5ubq6uru7u7y8vL29vb6+vr+/v8DAwMHBwcLCwsPDw8TExMXFxcbGxsfHx8jIyMnJycrKysvLy8zMzM3Nzc7Ozs/Pz9DQ0NHR0dLS0tPT09TU1NXV1dbW1tfX19jY2NnZ2dra2tvb29zc3N3d3d7e3t/f3+Dg4OHh4eLi4uPj4+Tk5OXl5ebm5ufn5+jo6Onp6erq6uvr6+zs7O3t7e7u7u/v7/Dw8PHx8fLy8vPz8/T09PX19fb29vf39/j4+Pn5+fr6+vv7+/z8/P39/f7+/v///yH/C05FVFNDQVBFMi4wAwEAAAAh+QQECgAAACwAAAAAHgAUAAAI/+UEmjt3Dl1BhOjSpUOnUN06dQshqlPX0Bw4jOHEjSNHbtzHjuXMlSN3DZs5c+QECuT4UZu3b94yhqNJc+NHcIcGfazZkya2bdy6dcP47Ru4cBiRfhMVJ1jRbtZgHsWITdu2od2mygRntJsiJ4jIdW22yc2uoUa9UTOZTdvVbUG5zd0mTA4UP7myxZqjg4iQXdq4bdNWzRo2bNniXs0mbNgyasu2gTsmxU2TIDxs6IjSLO42w9ee7WK2LNquNitc1Fixw8yuXWOYNImi5pcmJHGsarNmMlSKFFXI1MnB4keSKGHQyKGmiNAZO87GhdM2a7A2aoZpkRnGjVqeFzGGtP84kaNGGlRv1GxxJO6ouHDbsmHLbk1wTG7EmJhQ8WLIiRNmOMEFLO6AqRtuvOlGm2uuqS8boebyZhcaXkiEG1SsWEGGFXy4JZwFrWrwmmqmoeYwt+LCpYtkxFAGHHHECYYFFkQJ5xtuGBzRsGimQfEzakrhJAmhjhqGDFoq+aYb+UwaEZtoTkQMrsmeKQSTT6jhhg5nxLGFmcGyyeaa+RDrsZoG3XpLpmNoaWSPSy4ppZRbctSmzPkajEYaNK1RUzCYwPFGGm2o+oaw+ayxpj5roPHRmmrUVKwbrwD1RkH5EiXxxGpouUWXX3whhplmkhmGmGWWAQaYYpZpphlkllEx5plmjFGGGF10uQULNdoAZJBFKInkkUs2QcWVWVZZpRRYWFGFlFA40UQSRQCxFpCAAAAh+QQECgAAACwAAAAAHgAUAAAI/+PKmTt3Dl06hOgKoiOYEGE6dOoeqouI7lu4ceLIDSRYjhy5jOE+Gks1DmRGkB5BbvsGDly4cOLGZRQX7pu3bt62JRrjDVzLb9+6vfx5bZu2bdy65Qy6dFs2a8XczGnWbdu2atCwaVPajZs1bWG5el3K7em1X0hmiDGbLdmdJpaqXQ1bLZu2bHe57eUWFpu1ZbAwcaJkqxCXFjBaULoWNpu0atasXcOWN9uzVq5o4YpVDByxI0+KxEiRgoULXFu1QZtGTdkuYcaixboyY0iPFzl4pHrmR0mYJnCIqXJipVnYaNSmsVlRxEoiND5m7OjxZEoXPtIM9UkzRpg3m7Aaa/9LTq3Vo2mA79CwUQPHCxgytizagkZMInDcvN3Uhg3bs2mkoaYybK4RBowYYIhhBhhYiOEEF4rAIhpusLlqm7+sYSaa5P6qhppruJmkBiOkmcQHFVx4AYdVutGmGseukUyZZpyZ5kMcp0FDFSp84maWE4Z4wRe/8soQsGegEVC5G4H5AxMtcMmGm2qS6CaaU1SBirICr7lmmWfClGbMMa3pRhpM4oBkmmAw8cabY2jJ0MsukWHGmWeiGROaaKapzBtcFglDkWGw6UUUbaypRkbJqqmGGGXuzBOaJJOzC6ldhunmmEKvycpRR6mhZphklmmmGT2jgUZJaibzMy8vPZ1PphnlRA1QlVl2ASYYW3D5xRZdhhEGGFpo+cUYZIwh5phinBEGmWWSUZYYJdK4g49ECDEEkkk2AcWTUlqJhZRUXFkllVNI8YQwTzYhjJGAAAAh+QQECgAAACwAAAAAHgAUAAAI/9++mUOnTh26de7WqWv3rqE7du8kMoQXr6I7eO/cXcMWjly5cuPKpUNH0CA7dum63Uo3bt3DdyjZqYNWbRu3b968gRtHLtw4c+ZIkvMkpOM5dezWLUSH7pwzadi0bbu57Rs4cOHEkTOXbRCXXefCEVyXTl26c2mfRavGEVu2bd3ACQRHbhqXGEq8nfO27RaqXOjSBS3nDJq0aRzhygWnE1wyT4ISfRp2qAgMKFJ2lSxHrpmyZs+kUWs7ddiwYst4qYpm7MUVGChOzBjypFpnz8yaJYulSxi1Y246lFgRIoULTLSWrBiSwgksRUECbS237JkzNxs+iBhjxQUJGjKKHP+hcodXFjhTsNBqaYzOtc7JnDFDxeOVLVuAVKhI0QKFjB6mCGSLLJzo45ym0kmHHAaNOcY6ZNzaJYgVSoDhBBRmgMGDFHKQIhlzzgnxHAbHOSYZZZSpZhrStMFmERZiiKUMEkbgcAVGQMKNHHF61I0ZZ6KRJhpqrulGnDFi0KYcalQRooQQtpDFG3LGsTKcuZoJDZppWKymmmyeeUEHXrL5hRtRLhnHGl9UwRIrunQj0hqO2rJmm2nssGMPWHipphBxwoHmGHEEEsibbgwjjc5rurwmm6ssgaUXWFDZ5BtuWrmmsW6+6aabbZRxZi3SrqGGGmuw4QYccU7JBCdxuolyBpZwPOWGG6pCZYYZLk+dRppqrIGLTmB24aYbbZ6Ry5tbt9HmWU46keQSWGa5ZZdcdOFFF1tQkaUYYHwhRphYiHEmmWOOMYaYYYgBg4wz0iBDjTXUcGONNvLwYxFLJGnEEEQGYaSSTCx5JJFB+jiEkYAAACH5BAQKAAAALAAAAAAeABQAAAj/38KBCyfOYMFx4saNI1eOHDlxDx8qDLcQ3DdvGbt1w+iNWzdv3y4SBAeOGq9vIrttY6kNG7ZsLLNl01YzG8xt3D5u7OYJhzJt3LBZo1aU2rRpMK8pHWrtGs2a26ZREvNJ29Nr0p5JkwbNa82XQ69Vo1YtGzeW0dzcMLMtW7VrzXixghbNbjSw16xVI1v2WktlmNiUSRWME5kVJVScqhsNWt5rRclOswbT2jFj2H4JOXNDiJEULGQUK0st7LXI046yKtNljBY4XWy54nIjSZEngpaIMHSUGuprwrQ4ucLIjwwTSoo4sTKlELM5cLh06ZSNmSIYwlSjrhasyaFaqiit/wiBg0cKIl/8rIpTx0kabW65CTsqrey0aL74UkPlQQSGFFBAgQchblDCiS1a0eYtmKaRBilqvHKQK2kmKUEEF9gYYQQXTmgiiDR8g0aaaJxpxhm7nHHmGRVXhCYTE1CwyxZLqshhiCcYmUWaZphxZplllOlxGWaYaYZIIKNJwwZijnLwFDaI4cWRW4BMJhlllnnmGWaIPJKZLJ3Zow4+/qgEmUagMSyaZ0RxhhlksEQGmmeCVOZOZZA5JplKPoHGmV4YCUYRV7aSZhNohgTSKziVSQaZZTA75hlEggHzmWT2o5OVEodMphlQHdXzmGKIKcbROixtZpgJvWqGzlGP8UzFl1t62YWXXW6xBRZaYIHFET1kgeWTW2qhpRZbeOFlFlVUQSUVUSSphBNKHjEEkD78yCOQRCRBhJA/HHmkEkkSOaQRRfRQowsvsggIACH5BAQKAAAALAAAAAAeABQAAAj/5s6dQ0cQXcGD6RSaU6fwYEFz5ciNE9ctG7Zw4sZt3Khxo0Ry3MiRC7eLWzhw37px25atWjRo3r6Bo/ntm0ybNMFhsymsAquV2a5dq0btWTNm3bwt9dZtJTduSm9i47YKCZ9r2oZaKyrNGbNl25w6lek0alNv1BRdoJGs2zZs1qQli+YVbNSxTbnpdbpNGqouefZYU5bJDY8XfaI5a9YM79ixUKNmi6YMHLctZCwwWIBgwIFZ0J492yZZmzao25pRKsRoESZArmIJ2VCCgYYYNAbcEU0a6rQqPqY44lSkBA0bOJI0KfMsjJYeHaooS8YFhDBmzFhyyzblUjFSpmh0/7jRYgaNKnhiOZHyYkWxpd0A8VoW9vQ2a+CawuoAQkQMDzyAIYgMfDjBhjy82UasbqDJ7ppsstFmLG2qacKDDVawYoQQSIgABhgyuCUba6zB5ppmlknGGggl3OY0bVRZwYgagJHmF1IMgcEEGvQIZpppqJlGGWWOqWaoa7CJUJtspBGiFUZEycapb7ZZ5hY87ADEGWicQQaZYqph8cQls6GEj214EcOZBaEqsZRsfgGly2SSQaZEE5VkEps0mnGKmUg6gabCUjJh8RpTZmEGmWPCFHOoi04kBRpuUKsGGUeMUZK7oqrBRBljhhGGGmrEfFTMZlTBBptqklGyKBa5klImmmeOAcYXX4ARps5lFk1mmGMcSUUYWkbxhZdbatlFF150qUWWWErR5JJLJqHElFJQKYWUUjwpJZdXTCEFlU48yUQSRxxhxA84upAiiCB2sCEgACH5BAQKAAAALAAAAAAeABQAAAj/48oNNGfu3MFz5sahY5jO4UN16tJFlJgOnTdx4sJl5KixG7ly5MaJlEUNJDmUA0OO2/YN3DeYLsG9zAYunE1wyVCMCnfT5TdvM79xExoTKNBtQr21UmIoW8xu3bZl8+atm7aoWbtx47oNW9Vuj0jIOAVuGzdt1KxBs6aNW7dsXLlGRTs1rtRZbkBFGfbMWKEpZWzY0rbN69u3W7cVtnbNMLZdLi3l4GKCRYwUJbZg06bNMbdt1651xkZNVSZTqVRtCtXLSxEdRHzwePJixa3Ojrc9CzIiyJ9JSVCcMIFCRo8qyvbYsQLECSxriW4k6mwtW7ZrTTLRAvVJxAcaLHbI/0jyhlaXGUOAiConkJSXttY5YwO3tRGFDyhMeODAgkgJF4SQ4QeMbBLnm8WqwQYbqqTKZpIMPAghBzZQEOFCHIawIY1wwLJJG2yiaQybx6wpRQMQXiBjnG6MeWUTRJIgoocwiulsm25Ei4aaazjLxhppDGlhFVWycEmckUYyJxkwMLnGGs6sqWYa667TJhs+rCiGHGSogKmnnjICxxNRNIEyG2yuoYbB67AbwxpxwLlGjGS8kcmmcGJxRpxiJOGsxzXTZPORqqbS5hBhuKlqUWZe8kYZR6bBxpppREsTTUjO2mYacLJp5BXQzlJUMc+oUYuXYpIZRpljimlkFV+IkT4Fl1JYQSQXXnrhBZdehhlGGGCC8WUXXMjAQw4/ECHkEFAkQWSRSSbZxJJKCvFjDz/sqCOPO+IogwwutrAiIAAh+QQECgAAACwAAAAAHgAUAAAI/9/CiQs3UFy3ceTIlTPX0OG5c+giQjznkNw2bt0yevuWDRy4guLEjUvoTRa4cikVkiNIEBu2bNm2YbzWzZu3bt8+Frz149g4kQXDfbvpzZq1a9eyadNWjVvGjeC8qdICiuBHot64Ydx2tFo1azCpxWS6rds2RiN64AqHU6O2bUtnfv169Nq0pDCZVhOlhNSVXdqgbbLSZQ8rbHPBWquLF2nMbNGWecvmycOZCB9KcIBQhNpcamCZRasGrVo0XLF+8fKV6dinLkFeiHBh4kIFCqyyXaM2jVqsERxcgAk05AUNEx0ydJhjDQuWJR5sWDrmZkIimNV64/rCCtcwOC42dP8AkeHBg0HOWJTQcEJTwWx4jljL1luatGrYrP2qICHDBwwwmACBDFwQYYQMVogGp2+i+UWbbKrxbRrtpmlFwAxQkEOKDzIAoYfNPCBjmqVyAgdCaqSJBppoVixFAw8wQMEZcKj5ZRVOHgEkCAuyYIOaxLjRBhtqUnwGmmd6kcIOY1BghCm3ivImk0AowW8xa3yrRkVhhhBFm2BUSOYouGbK5qVsGLGjxfvuC623aBDJZRprGnEkwmrOxOYaCSm8hgxenjmSRRVVrCUUaZCZRphJJKTmGmtSdMYZaO7bRRFblJm0GWgofcaPI4/BL5RdpDEtxWaWaeYZaR6NppJWnGlNpplffPElmFhkeYUWXGzRxQtGWLklllhaecWVVmTpJRdecpGFFVZa+WOQQgZZ5BA9pmXEEk0UCQSRQOBAA4sw3oAjjS60WMIIIHzoISAAIfkEBAoAAAAsAAAAAB4AFAAACP/hxpEjWM6cuXPo0KlTx87hOoft3E10B88ivHfvvIHj+I1jOHHjyhlUiO4cN2Dp0kFkJ7FlO3bbtmmbSbObN4/gxJUjOM7UEnDmVKpcx1ClNWvVsCG9to3bTZwgw7EioosnuXMIEWY9dw0pUqXZtnX75o3st0wkdggbJy5kwZEHsV3zOo1atWvYaD7tFo2Qj1xyaH1b5onNGVm/Cia9Vk1aNLt5s+21y43brSJZZjRxsoOFGYHipo1OlisXL2TSnhUL5swZslbW9rQJo8RKlyUrbvwYppPatGiYJky4YARPixAoSKQQ0cLTLy1r3jC5MuqaoxuiwoX7HU0XHlvKmjn/CbEhw4kZNm6MSvVDSI0morJ+Q5RHZzXH1LJZk2bKAoYPKsiAgwxMgEEIHGb44YdpyDEIG2C2S2oaaaiJZpk+MNiAhCg2GQOEEDpgwYYabpCjm3EGGokjah6DBhpmfvnBAw5EQAaccLRJBhZNVqlFiirWiESaFMcB6bFmnGlGlickWUOGWrrZ6yaQyEnmEXK8WUUncL4J5xlonFlmmCdkeYMMZLrZjy69bvpmHEquAUeYaL4pizBmlkHGD1+USUOauaq5ixqksJmsr1K4mQYYyyxTRhlc/IDlGGMaARMaMCmUxi5r6OqGFmmgOUYbbAw95phTfilmGGIo6VMZZmB8WkaaTfHLyxpNriE1r2tA2eSRQjz5pJNEqsBEFFFIWUSTU2ihpRZbctEll1M+waWWWGR5JQwvsPhiCiuwMIOOMdA4gw48+PCjjzzssCOQQAjxo4412oAjjjoCAgAh+QQECgAAACwAAAAAHgAUAAAI/+EEhhNXsOA4hOPILWSIkFzCceLCgaNYseJAggYLNkOmsaDAbyG9eQsZ0iI4jAIZ5UkpENzIbt1GljT5jeJEcN9KgSl2Eee3mNxkkqRZ0iKnEkaEmawYMubTkVGlEp0mpwcsJ6W2oarDZMkqYd24jYU6deY3odm0tbKxw8OKEx4a4BlLthsyYsuOKaPG7Fcxa9iiBfPWB9CYFiqe3HhQYQSzbdvqcspgAgegQzJY3CihAsWOXM/m0OGT40qkZXogwNKmjWyyVNe4RcOxwUOGEDmGRPmVKsiQDVEeUcS2J1FryTJLvtKAAoSFDBgw1DjixIeLEiGIlaRWbJs2yUKjLuvqgGNFnkxiNmBoUWIGEA81qHlTzi1yXaHdaLXwIKQnSmuIWcWTVGiQI4wugHkqMvDue4YLEFCwpJqTLCqjG3CaAQWSsbTJJptt1OqlklLSUKYkoorqRCRvpHHluw+zCaYTV7ixJBuZnhoqqm4ueWqsYnTB5prA1NpmGVbwUxK/W8ZicJthqMHGmms+1CYWYhhsMDIuv7MlGvA8/LAaMnf5hRlnkpllmGSMSWYZY5QJxphglklGmF0+GYYYXm6BpZZegPFlDz0UkSSUV04hRRRRVrGFF1xiceWVVmKpRZdbaqllllZYOaWUTgICACH5BAQKAAAALAAAAAAeABQAAAj/5gSaK1dQ4DmE6NItVJdOnbp169hNZNduYjty5MaNEzcuIzmDCc+hC6YMncKHENc9XKdRXLhw4mSKyxjyXDk3lBIydMhwJjhw4cDN9GhwnKU+1UKeVMhUptCgMGHK1Bhu0I8ryYqWMzcO4cGXQMF9IwtUqrhjdLjESgLrGyQoVrKAYlbwHNBvY71160Y2L8xq3rxtw1RjTg0jRHiskAPSnGBvsXT5auWqlqpRsIoJwyXLG55CWXIIiZKEBpAiyLh+E2xGBJYiqtrIuNFjBgkZSoIhCwRIDZI2iYQdMnJqnDm/vZSB4/YqRgsaIFQgiXKm2CgmUaCoiWQOnbZEfcgh/ycLk6whFzJGhDBxooSRK1WUDMGR5Ns579uOmbvL2hvrbZqgQYZCVtmEihRSEGKIL5yo4QuQuPqqHLL2oiYTOUogg5RxYhpHml8+6SMKTQ5BYpiiCAKJr22A+eONGXCBCbJvYhJnFFwKUoaMZDzUiBxsQiFkFGLCaIa1brjZRhtuuvmvEaKy8eMYqmTahhtuoEEEGyy38TKbbLzsxhlVoIrpG1eCoUkmMI+5Y5ptstEGzGyuwQYbbbbRZRoapcJFFGJguoYXUaap8xprrlHUmkTvvOTKvQQryxttgpqFFFpW2QUXW3LBpZdbaBFFFVZwqcWTW2aJxRVXbPnll2GKMShmGC7EOKMNNtyQgw485lAjVznksIOPQva4gw825qBjDjjeaMONOQICACH5BAQKAAAALAAAAAAeABQAAAj/37558/YtHLhw4sSNG0eOIUNyEcmVM3euIrpzFrlt3NatoECB4ESC+wYOWbKE4iI2LDeRXDZtMWNu49bNozebHrsRguSNZDig4xQytHbtGjaj2LRto8l0KbZNgZTdLGkQ6EFqWatpvZbNa8xs1gYZIaOMKTeC20aKjCZN2rRqcY9iw5bN6DA/WEhh+YUtFBczezQhK+gtWjRo0ahN42r0mjVn1bBZe4QkU5QyUmrEEHQT2mdWrm6VIuWJ0iJKqFphClWNUaQoRq6MYZIiCJFlOKM9e1aGRA0pk+LsuEFkh4wkVEQle2SpEBVEhJQ9wtFqI+JovYRJQ9YpxYgTHkoU/6myRxYpJ0qk5BnETVy3UIZofn4Gd5q0PylogCBhIsSKIXpAgggdYoCjsHC8uWajZ6B5RhpqeqFlCxlgUOMWVupIoYQdcrCCiBf88AgtnDZyxkFomJGChRS6SMQZbjrCBplSeECjEioEaWqjbmJs5plmmImkBkKEiTEbumDSZpNMNpIGjl+0gckpbZiJ5RNMDFHmscessaaaonIZhRuZoPlDMpiy2aZKZAIxJav7GMsqq2gqOcqxbIYZxZokvVqGmQY/+8wttw4jBZov4wJTm158KWquZf5sphlnKuUNRWRemWZTaraqxqhPknn0mlZOkWUWXHLZhRdfesHFll1kwTfFF19uqUUXYpD5ERpWmKnUmTnk+IOQQxgxRJFEIIEEk042ISUUVlSJhRZbbLnllmpjiQWWWAICACH5BAQKAAAALAAAAAAeABQAAAj/4sYNHCiQ3EFy5cqRIzhOXDiBDsNN9MYN4sRw4MBBFBfR4UNo0MJ9+zYRHMlu3CxmJOmtm7eNG02C82ZoUEVu31xu25bt2rWNOrul5OZN57eTJ1ep6cUtG89t2rJZmzaNmkahRId6M6rz0g8017hh03ZN2jVk0qRFi0by21CV21Ru9YYMTpNFgKIZi4TlSqYwz6xO04mTG9S5Q6lZs/ZN0ppHOnzEMAEjk1VqXLttU7YNWzJcojBpYkVrVKZqn9gU4QHlyIwYOIIwgxYN7rAwdLi40fSmyhYoTqpocfQMEJ4yUtSksqZnRam1cZWVqoVM15EdQWyseEKFNy0nVtg0/ynVTdu2SY/YZpNKVmq1IFmaxLih4sSPF0RY9Lihp2y1arCxprZrsLmGsWtaQQWIH34wBZhFhCDhhBtuOGEF5qiZJpoNnYGmmgOpqQaWJGh4oQrUsOHpmVRYsIEGK9aKBhpmnmlGGWcYg2YaUiixpJhmrNFwMcZOQQOaVuyYBppmmFlGGWSOUUbIWCbRxRpV1GKLLWqk8eUOatAKJBq1nnFGGWWSQcaan66hZhRcomnGw7WkCeaPaA68Jo9prKmmKhqZmbIaPwejcRlmignFkVv8BPCaS5ihRkQNbWTmT7VCisZMZjqd9FMAqwmGlkdDlIZJYHIxRphgdtmFF11ooT3lFVVMScUVVljJBZdAStHFl15okWWVU4xxhRRYXkEllVNA+UQUTlBZpRRSRhmFFE5AOTaUUCAZBA857AgIACH5BAQKAAAALAAAAAAeABQAAAj/3QQO7MaN2zaEB7Vt03Ytm7aH2bBdq0ZtmjRp2jRm48jx2jVrH69NvEaMmUiKFqNBe/Zs5EuR1SpSqyhz2ptDMy1KW/nMmTNrQWUGpVYUo7Rp1KJJQnNr2sWeLJ0xY1ZUZlGLT59Gi/ZMz4020TB2fcbLJ7Nlyixe1XrxKc9aXabgdKZrUhdEUlwtQ3asWNKiWo8i5alsGbNmbfwEKmGiggYhwY4ZM6YVWrNp0YapklTo0KVOjSw1UxQmCQ4iKFawGNGI8l+Mt94YuvIm0p0pVLhYIdMFkzFJabpEmXMsGJgau4wV4xrN1iJMwFgZwfKkhgsxXPCwciWnUZEiuaRB/4NGSlgxYiyhRXsbrQyZLzhqeFCxAwYRHTeMnFrZLK2wYIBxpqVnWILklDuS+MGSYjC5QgMWitDggzd8aoaZZIwBBphfmmnmJ2dcsWSNPs7ARJoCo+klkhZCuMOXC9NChphffOnlsAuV6eQZUJ5ZaSq0msFkBzSgQUuZZJApRhheeNnFQ2eCkcSYsmrxSRlglFHmmDFS4cS/ZJDMMJgmefnwGWTIe6aWXJxpJplZGOlEj1xImQWtMJFJ5phhfGnyTPWcKcaZZQo1DBktRwEmyST70rAXXnpRUyo3j9QSGcqOqeQXZPqarJhigqmxF1902VPPyYjZZRVTREnllFVO8TYkkVZeaWWWWFr5RBFEDkFEF1l8GYaYYIrtJRddarHFFlVM4YSVV04pRRNIEumjjSm4uEKKgAAAIfkEBAoAAAAsAAAAAB4AFAAACP/jypkjiO6cQXTp0qlbh65dO3fv3kWEB88dRIntvokLF07cx3EfyQ00Nw4dOmvT1qljuDLdyZfcvoEDNzPct47ixo0ER47coT7mzp0zh84cOYHlyGHbxq1pN6jevNHE6a1bJTnCdnIMCY5jx2rZsmHLpq2p1G5WvV3rI4TLNXAdpdby9s1qt2jW9Fq7dq3stm1mt91qcyWOH23TZE254+KUNrLaoFHba63aNbJjyzKjVnaMnj45XHRQoeIXtmvWmkWbFg2atGnNYDnCE+iRJEGXqkH6kgNJkhlYvJyos3cZs2ihQIki9EcOGSVBsFwx0yXRNDtdwjBRk+1apR+7+iL/S8aMDw4to94QmQLFBgwrXN6IAmZnkBAjx+yCC2u5GLFjhCFGGmiSeSIJKnToYQQbjvDBiCK8sIIXbrSxcJtqpJGmGGOOYeYZZ1ZJRY8YhOhDmUwWTIGHE1wwZRts9KqmNWeaEUZAY5JZppAnbOCijmCmuYYaXwjJoQZEpLmmGmoIZEYZZJAB5pdefhmmmEty4cOZaJppBkRqYsECGmymgeaZZpRZRplihAmGF15w2QWYYDQJRhhFjEGGGE2KaYYMUqiJ5hlmkkHmGGOKeZOXW3S5xRZeYhEEGGM6uSXKYQQhBAZkQFzmGEOPCaaXXXTRJZZZaKkll1l+CSaYU4a5dZJDRH5Jc5k9hyEmmF1uweXXWnyVExhibjSGGGOOZUWTZ5ZxNtQ2edFll19HCYUVVlRhJZVRRjHFlFJSYcUVRFYxRRVtV2GFFE8ygaQQQxrRIxFDFkGkkUskYcSSSii5JBJKMkGEkD7+4MNgNtAoo4ssstAiIAAh+QQECgAAACwAAAAAHgAUAAAI/96+DRwYTtxBcd4OjhtHrtzDh+YkTpSILdtFbdq2devGjZs1byEHVmMWziRClOKoVbNW7dpLiy+hZcuYEVMcbt/AgSPYM9ozaNGkTZO2khq1ZtVYTrsUqJZHbh2hcuzGjFmzZs+ARuMKLVnQZXmMjGFmDdtZYZtoatyW7BgyZFadXX3G7FhWXXykkBEUDdonJEGQqKqG0RixYsSMJUuG7O0xY8qaCUv2jNgVPG2Q9GAxRIixtcSGDRM2LLEwVXymUHHDhs2fX5uo6GCiREmlOzoAXbs47BcwS6lQIcJzhUmOGUKkhAGDZpmgLnfkfMLmbNWbZmd/+eLFRoWNPmqE/P9w4kNGDyNWBunSgwYMHGrWrmnLZq0lr124JDlqxZ2LiSeUACKEGmaY4QYjwJDjmGmEUsqoW2yRxZZcdLHlllA4OCGIWziZIoQTeujAB1eggeYZoaahZpppYpHFRVxsmYUKEjzoApZklnGmF0poCOIRZ5pxJkgUu2qlFVlkmSXJS8oYwRZfSivmGEpSkOWZZZJRRstmmHHmGWdYaeWVV5KkRZdGUrmjE158OeUROSRBBZlijDHmsWOUYWYZVFTx0xUlbaHlEmL+oGUXUH645BFSihkGscPe0jKZU0pBJRVVXInFllR2ASYWWhihxJdddgnmt2CAAebRYR5DhZRUXHFhZRYKfwkmmF5K2YQ0O30DJpg64ZoSrkwouUQSSyzRRJRSYLHFlUZYUSWVWEfxhJRVUGEFlVE4+cQTT+ZoQw9ACmkEEkk08eQTTiaxpBFHMKFEk0gSQUSRRR5RJBBA/AgkIAA7";
const buf = Uint8Array.from(atob(testGifB64), (c) => c.charCodeAt(0));
const at = Module._malloc(buf.length);
Module.HEAP8.set(buf, at);
Module._read_buffer(at, buf.length);
Module._play();
Enter fullscreen mode Exit fullscreen mode

最后运行此代码显示frames[0]到屏幕上：

const canvas = document.createElement('canvas');
document.body.appendChild(canvas);
const context = canvas.getContext('2d');
context.putImageData(frames[0].imageData, 0, 0);
Enter fullscreen mode Exit fullscreen mode

恭喜！你成功创建了一张图片！🖼️🎉

显然，从我们刚刚完成的工作到创建可用库（如您之前在 中看到的那样），还有一些工作要做fastgif。

一个挑战是 Emscripten 的辅助层非常庞大（~100kb 的 JS，更多的 HTML），并且实际上是为单片程序设计的 - 其中所有代码都在 C 中，而不是仅仅试图包装一个库。

如果你想了解更多关于 Emscripten 以及如何避免使用它的辅助层（也就是它的“运行时”），请查看我的后续文章。它比这篇文章更技术性，而且需要一些 C 语言知识。

完毕

我希望你已经了解了：

a) WASM 很酷，并且可以加速传统上复杂的计算任务，例如 GIF 解码；和/或
b) 将本机 C 库（尽管是以非常基本的方式）移植到 Web 并不太难。

谢谢阅读！✨
