使用 Electron.JS 构建原生桌面应用程序
JavaScript 被浏览器束缚的时代已经一去不复返了。Electron，或者说 Electron.js，是由 OpenJS 基金会维护的一个框架，用于使用 JavaScript、HTML 和 CSS 等 Web 技术构建原生桌面应用程序。
越来越多的原生应用程序，如 Spotify、VSCode 和 Slack，都是使用 Electron 构建的！
这个开源框架使用 Chromium 和 Node.js，可用于创建兼容 Windows、Mac 和 Linux 的跨平台应用程序。在本文中，我们将使用 Electron 构建一个可以在本地运行的简单井字游戏。
Electron 基础知识
Electron 由三个主要组件组成：
- 处理所有网络内容的 Chromium
- 处理与操作系统交互的 Node.js
- 自定义 API，用于附加功能并解决处理操作系统时的常见问题
所有这些组件协同工作以促进桌面应用程序的实现。
此外，Electron 包含两个主要进程。主进程负责窗口管理、所有操作系统交互，渲染进程负责 Web 内容。
渲染进程无法直接与操作系统交互，只能通过主进程进行通信。根据应用程序的不同，一个主进程可以有多个渲染进程。不过，大多数情况下，会使用一个主进程和一个渲染器进程来加载 Web 应用程序。
解释清楚之后，我们就开始构建吧。
设置我们的项目
要使用 Electron，你需要在你的环境中安装 Node.js。我们可以先运行以下命令创建 npm 项目：
npm init
设置好项目后，我们可以使用以下命令安装 Electron：
npm i -D electron@latest
创建 Electron 应用
在我们的 Electron 应用中，我们将使用一个简单的 HTML 页面来运行一场乒乓球游戏。这样，我们只需要关注应用的 Electron 部分，而不是游戏本身。
几周前，我们只用 100 行代码就制作了 Pong，所以我们将重复使用该项目
我们将在项目文件夹中创建两个文件。index.js 将充当我们的主要节点进程，而 pong.html 将充当渲染器进程来加载天气数据。
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| // Include Electron | |
| const { app, BrowserWindow } = require('electron'); | |
| // Create the main window for the application | |
| function createMainWindow () { | |
| // Setup the windows options | |
| const win = new BrowserWindow({ | |
| width: 800, | |
| height: 800, | |
| webPreferences: { | |
| nodeIntegration: true | |
| } | |
| }); | |
| // load the html file | |
| win.loadFile('pong.html'); | |
| // Open DevTools - For Debugging (Optional) | |
| // win.webContents.openDevTools() | |
| } | |
| app.whenReady().then(createMainWindow); | |
| // Close the application when all windows are closed | |
| app.on('window-all-closed', () => { | |
| if (process.platform !== 'darwin') { | |
| app.quit() | |
| } | |
| }); | |
| // When the application is activated create the main window if not exists | |
| app.on('activate', () => { | |
| if (BrowserWindow.getAllWindows().length === 0) { | |
| createMainWindow() | |
| } | |
| }); |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| // Include Electron | |
| const { app, BrowserWindow } = require('electron'); | |
| // Create the main window for the application | |
| function createMainWindow () { | |
| // Setup the windows options | |
| const win = new BrowserWindow({ | |
| width: 800, | |
| height: 800, | |
| webPreferences: { | |
| nodeIntegration: true | |
| } | |
| }); | |
| // load the html file | |
| win.loadFile('pong.html'); | |
| // Open DevTools - For Debugging (Optional) | |
| // win.webContents.openDevTools() | |
| } | |
| app.whenReady().then(createMainWindow); | |
| // Close the application when all windows are closed | |
| app.on('window-all-closed', () => { | |
| if (process.platform !== 'darwin') { | |
| app.quit() | |
| } | |
| }); | |
| // When the application is activated create the main window if not exists | |
| app.on('activate', () => { | |
| if (BrowserWindow.getAllWindows().length === 0) { | |
| createMainWindow() | |
| } | |
| }); |
index.js 文件将帮助应用程序创建窗口并加载相应的渲染进程。在本例中，我们的 pong.html 文件如下所示：
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| <!-- Pull in P5.JS graphics library --> | |
| <script | |
| src="https://cdnjs.cloudflare.com/ajax/libs/p5.js/1.1.9/p5.min.js" | |
| integrity="sha512-WIklPM6qPCIp6d3fSSr90j+1unQHUOoWDS4sdTiR8gxUTnyZ8S2Mr8e10sKKJ/bhJgpAa/qG068RDkg6fIlNFA==" | |
| crossorigin="anonymous" | |
| ></script> | |
| <script> | |
| const screenDim = 500; | |
| let score = [0, 0]; | |
| let ball = { x: 250, y: 100, vx: 2, vy: 2 }; | |
| let play1 = { x: 30, y: 250, height: 100, width: 20 }; | |
| let play2 = { x: screenDim - 50, y: 250, height: 100, width: 20 }; | |
| function setup() { // Runs on startup | |
| frameRate(100); | |
| createCanvas(screenDim, screenDim); | |
| } | |
| function draw() { // Runs on loop according to frameRate | |
| fill("transparent"); | |
| rect(0, 0, screenDim, screenDim); // Draw the box around our game | |
| // Show Score | |
| fill("black"); | |
| textSize(32); | |
| text(score[0] + " - " + score[1], screenDim / 2 - 40, 100); | |
| // Draw ball | |
| fill("red"); | |
| ellipse(ball.x, ball.y, 10, 10); | |
| // Draw paddles | |
| fill("black"); | |
| rect(play1.x, play1.y, play1.width, play1.height); | |
| rect(play2.x, play2.y, play2.width, play2.height); | |
| if (ball.y > screenDim - 10 || ball.y < 10) { // Bounce off top and bottom | |
| ball.vy *= -1; | |
| } | |
| if ( // If intersecting with Paddle #1 | |
| ball.x < play1.x + play1.width + 10 && | |
| ball.y > play1.y && | |
| ball.y < play1.y + play1.height | |
| ) { | |
| ball.vx *= -1.1; // Invert and increase velocity by 10% | |
| ball.vy = random(8) - 4; // Random y velocity between -4 and 4 | |
| } | |
| if ( // If intersecting with Paddle #2 | |
| ball.x > play2.x - 10 && // If it | |
| ball.y > play2.y && | |
| ball.y < play2.y + play2.height | |
| ) { | |
| ball.vx *= -1.1; // Invert and increase velocity by 10% | |
| ball.vy = random(8) - 4; // Random y velocity between -4 and 4 | |
| } | |
| // Move Paddles | |
| if (keyIsDown(87) && play1.y > 5) { // W is pressed | |
| play1.y -= 4; | |
| } | |
| if (keyIsDown(83) && play1.y < screenDim - play1.height) { // S is pressed | |
| play1.y += 4; | |
| } | |
| if (keyIsDown(UP_ARROW) && play2.y > 5) { | |
| play2.y -= 4; | |
| } | |
| if (keyIsDown(DOWN_ARROW) && play2.y < screenDim - play1.height) { | |
| play2.y += 4; | |
| } | |
| // Update score | |
| if (ball.x < 0) { | |
| score[1] += 1; | |
| ball = { x: 250, y: 100, vx: 2, vy: 2 }; | |
| } | |
| if (ball.x > screenDim) { | |
| score[0] += 1; | |
| ball = { x: 250, y: 100, vx: -2, vy: 2 }; | |
| } | |
| // Move the ball | |
| ball.x += ball.vx; | |
| ball.y += ball.vy; | |
| } | |
| </script> |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters. Learn more about bidirectional Unicode characters
| <!-- Pull in P5.JS graphics library --> | |
| <script | |
| src="https://cdnjs.cloudflare.com/ajax/libs/p5.js/1.1.9/p5.min.js" | |
| integrity="sha512-WIklPM6qPCIp6d3fSSr90j+1unQHUOoWDS4sdTiR8gxUTnyZ8S2Mr8e10sKKJ/bhJgpAa/qG068RDkg6fIlNFA==" | |
| crossorigin="anonymous" | |
| ></script> | |
| <script> | |
| const screenDim = 500; | |
| let score = [0, 0]; | |
| let ball = { x: 250, y: 100, vx: 2, vy: 2 }; | |
| let play1 = { x: 30, y: 250, height: 100, width: 20 }; | |
| let play2 = { x: screenDim - 50, y: 250, height: 100, width: 20 }; | |
| function setup() { // Runs on startup | |
| frameRate(100); | |
| createCanvas(screenDim, screenDim); | |
| } | |
| function draw() { // Runs on loop according to frameRate | |
| fill("transparent"); | |
| rect(0, 0, screenDim, screenDim); // Draw the box around our game | |
| // Show Score | |
| fill("black"); | |
| textSize(32); | |
| text(score[0] + " - " + score[1], screenDim / 2 - 40, 100); | |
| // Draw ball | |
| fill("red"); | |
| ellipse(ball.x, ball.y, 10, 10); | |
| // Draw paddles | |
| fill("black"); | |
| rect(play1.x, play1.y, play1.width, play1.height); | |
| rect(play2.x, play2.y, play2.width, play2.height); | |
| if (ball.y > screenDim - 10 || ball.y < 10) { // Bounce off top and bottom | |
| ball.vy *= -1; | |
| } | |
| if ( // If intersecting with Paddle #1 | |
| ball.x < play1.x + play1.width + 10 && | |
| ball.y > play1.y && | |
| ball.y < play1.y + play1.height | |
| ) { | |
| ball.vx *= -1.1; // Invert and increase velocity by 10% | |
| ball.vy = random(8) - 4; // Random y velocity between -4 and 4 | |
| } | |
| if ( // If intersecting with Paddle #2 | |
| ball.x > play2.x - 10 && // If it | |
| ball.y > play2.y && | |
| ball.y < play2.y + play2.height | |
| ) { | |
| ball.vx *= -1.1; // Invert and increase velocity by 10% | |
| ball.vy = random(8) - 4; // Random y velocity between -4 and 4 | |
| } | |
| // Move Paddles | |
| if (keyIsDown(87) && play1.y > 5) { // W is pressed | |
| play1.y -= 4; | |
| } | |
| if (keyIsDown(83) && play1.y < screenDim - play1.height) { // S is pressed | |
| play1.y += 4; | |
| } | |
| if (keyIsDown(UP_ARROW) && play2.y > 5) { | |
| play2.y -= 4; | |
| } | |
| if (keyIsDown(DOWN_ARROW) && play2.y < screenDim - play1.height) { | |
| play2.y += 4; | |
| } | |
| // Update score | |
| if (ball.x < 0) { | |
| score[1] += 1; | |
| ball = { x: 250, y: 100, vx: 2, vy: 2 }; | |
| } | |
| if (ball.x > screenDim) { | |
| score[0] += 1; | |
| ball = { x: 250, y: 100, vx: -2, vy: 2 }; | |
| } | |
| // Move the ball | |
| ball.x += ball.vx; | |
| ball.y += ball.vy; | |
| } | |
| </script> |
我们现在可以使用以下命令在本地运行我们的应用程序：
electron index.js

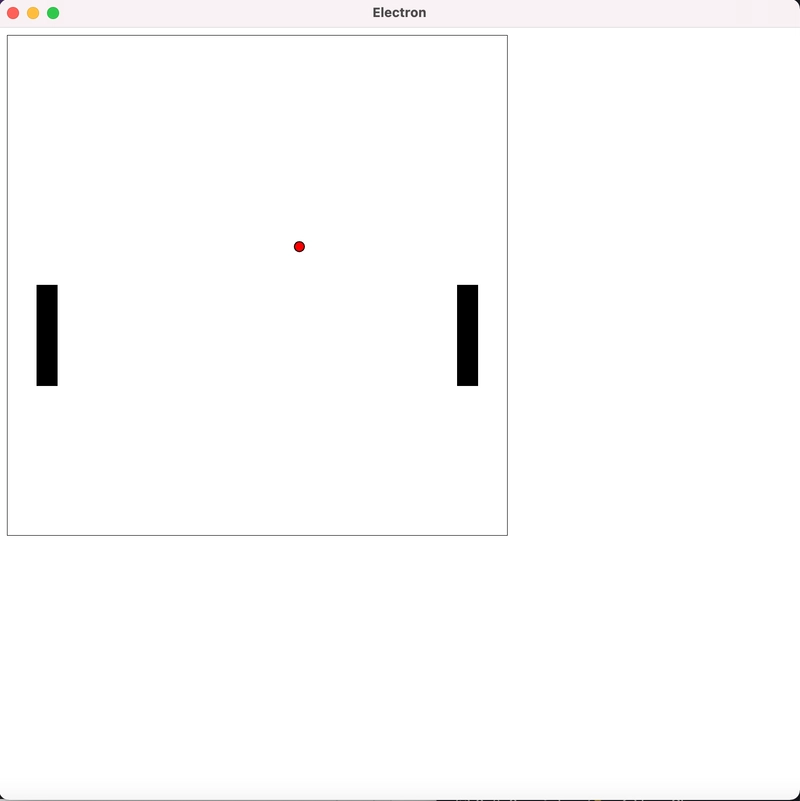

就这样！我们的 html 文件已经原生运行了！
结论
Electron 日益流行，使其成为有抱负的开发者必学的语言。更何况，如果你是一名 Web 开发者，想要快速创建网站的原生版本，Electron 可能是最佳选择。
如果您正在构建软件并希望消除瓶颈，那么Codesphere就是您的云服务需求的最佳选择！我们正在将 Codesphere 打造为市场上最直观的云和 DevOps 工具！
编码愉快！
