数据可视化：使用 React.js 中的 REST API 创建图表

修改应用程序

外卖

结论

参考

在本系列的上一篇文章中，我们在Mojolicious中创建了 REST API

开发环境中的 Swagger UI 可以通过https://localhost/api (port:443) 访问。查看这里提到的 Swagger UI ，可以看到有两个 API 端点。

  1. /api/v1/multi-line-chart
  2. /api/v1/stacked-column-chart

我们将在 React 应用中查询这两个端点。
另外，我希望你对 React.js 有所了解。
那么，让我们开始吧。

安装 React 和其他依赖项

有很多地方可以获取有关如何安装 React 的信息，因此我不会详细介绍整个过程。

  1. 从官方网站安装 Node.js
  2. 安装 create-react-app
npx create-react-app react-app
Enter fullscreen mode Exit fullscreen mode

这需要一些时间。安装成功后，你会看到react-app目录已创建。进入目录并运行

npm start
Enter fullscreen mode Exit fullscreen mode

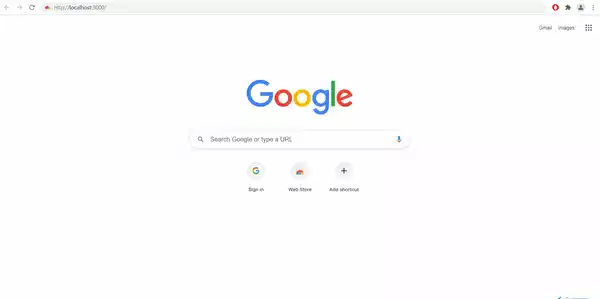

它将打开您的默认浏览器，您可以在http://localhost:3000/上看到您的主页。

我们需要安装一些依赖项。
我们会将它们添加到package.json。这是我的快照。

...
    "dependencies": {
        "mdbreact": "^4.27",
        "@amcharts/amcharts4": "^4.10.18",
        "react": "^16.13.1",
        "react-dom": "^16.13.1",
        "react-scripts": "^3.3.1"
    },
...
Enter fullscreen mode Exit fullscreen mode
  • 我们将使用Material Design 构建 Bootstrap，并使用MDBReact构建 React 应用。目前我们将使用 v4，因为它比较稳定，但他们几个月前也发布了 v5。
  • 对于图表，我们将使用AMcharts v4
  • 我们使用的 React 版本是 16.13.1。当前版本是 17.0.2。如果您要从头开始编写任何内容，最好使用较新的版本。我的目的是展示图表的用途和范围非常有限，因此使用此版本。此外，在较新的版本中，您将创建函数组件而不是类组件，这样可以避免很多复杂性。

更新后package.json，运行

npm install
Enter fullscreen mode Exit fullscreen mode

它将安装所有依赖项node_modules

另外我们的后端服务器在https://localhost上运行，我们将其添加到 package.json 中，这样我们就不必添加整个路径fetch。

{
...
   "proxy": "https://localhost",
...
}
Enter fullscreen mode Exit fullscreen mode

修改应用程序

我们将创建一些每个网站都会有的简单组件——页眉、页脚、正文、不同页面等等。
在此之前，我们将删除/修改一些项目。如果您查看目录结构，就会发现各种文件和目录都已由您创建。

  • index.html是入口点。让我们更新index.js它，它实际上负责完成所有工作
import React from "react";
import ReactDOM from "react-dom";

import "@fortawesome/fontawesome-free/css/all.min.css";
import "bootstrap-css-only/css/bootstrap.min.css";
import "mdbreact/dist/css/mdb.css";

import ReactApp from "./ReactApp";

ReactDOM.render(
    <React.StrictMode>
        <ReactApp />
    </React.StrictMode>,
    document.getElementById("root")
);
Enter fullscreen mode Exit fullscreen mode

这里我导入了mdb和其他依赖项。我还重命名了App.js并ReactApp.js包含了 。

创建标题

我们将在中创建一个组件react-app\src\components\layouts\Header.jsx。我们将使用Bootstrap Navbar为其创建不同页面的导航。

import React, { Component } from "react";
import {
    MDBNavbar,
    MDBNavbarBrand,
    MDBNavbarNav,
    MDBNavbarToggler,
    MDBCollapse,
    MDBNavItem,
    MDBNavLink,
} from "mdbreact";
import { withRouter } from "react-router";

class Header extends Component {
    constructor(props) {
        super(props);
        this.state = {
            collapse: false,
        };
        this.onClick = this.onClick.bind(this);
    }

    onClick() {
        this.setState({
            collapse: !this.state.collapse,
        });
    }

    render() {
        return (
            <React.Fragment>
                <header>
                    <MDBNavbar color="default-color" dark expand="md" scrolling fixed="top">
                        <MDBNavbarBrand href="/">
                            <strong>Mojo React App</strong>
                        </MDBNavbarBrand>
                        <MDBNavbarToggler onClick={this.onClick} />
                        <MDBCollapse isOpen={this.state.collapse} navbar>
                            <MDBNavbarNav left>
                                <MDBNavItem active={this.props.location.pathname === "/"}>
                                    <MDBNavLink to="/">Home</MDBNavLink>
                                </MDBNavItem>
                                <MDBNavItem active={this.props.location.pathname === "/chart1"}>
                                    <MDBNavLink to="/chart1">LineChart</MDBNavLink>
                                </MDBNavItem>
                                <MDBNavItem active={this.props.location.pathname === "/chart2"}>
                                    <MDBNavLink to="/chart2">ColumnChart</MDBNavLink>
                                </MDBNavItem>
                            </MDBNavbarNav>
                        </MDBCollapse>
                    </MDBNavbar>
                </header>
            </React.Fragment>
        );
    }
}

export default withRouter(Header);
Enter fullscreen mode Exit fullscreen mode

我们将根据this.props.location.pathname从父组件传递的值更改选项卡的突出显示。
这将创建一个类似于
替代文本

创建页脚

在 中创建一个组件react-app\src\components\layouts\Footer.jsx。我们将使用Bootstrap 页脚并根据需要对其进行修改。

import React, { Component } from "react";
import { MDBContainer, MDBFooter } from "mdbreact";

class Footer extends Component {
    render() {
        return (
            <MDBFooter color="default-color" className="font-small pt-4 mt-4">
                <div className="text-center py-3">
                    <MDBContainer fluid className="text-center">
                        <a href="/">Home</a> | <a href="/chart1">LineChart</a>| <a href="/chart2">ColumnChart</a>
                    </MDBContainer>
                </div>
                <div className="footer-copyright text-center py-3">
                    <MDBContainer fluid>
                        &copy; {new Date().getFullYear()} Copyright:{" "}
                        <a href="https://www.mdbootstrap.com"> MDBootstrap.com </a>
                    </MDBContainer>
                </div>
            </MDBFooter>
        );
    }
}

export default Footer;
Enter fullscreen mode Exit fullscreen mode

创建主页。

让我们创建一个小型的主页。内部react-app\src\components\Home.jsx

import React, { Component } from "react";

class Home extends Component {
    render() {
        return (
            <React.Fragment>
                <h2>This is home page</h2>
                <h5>Welcome to Mojolicious React application</h5>
            </React.Fragment>
        );
    }
}

export default Home;
Enter fullscreen mode Exit fullscreen mode

很简单。另外，让我们更新ReactApp.js（从 App.js 重命名）和ReactApp.css（从 App.css 重命名）以包含新创建的页眉和页脚。

import React, { Component } from "react";
import { BrowserRouter, Route, Switch } from "react-router-dom";
import "./ReactApp.css";

import Header from "./components/layouts/Header";
import Footer from "./components/layouts/Footer";
import Home from "./components/Home";
import { MDBContainer } from "mdbreact";

class ReactApp extends Component {
    render() {
        return (
            <React.Fragment>
                <BrowserRouter>
                    <Header location={this.props.location} />
                    <main className="site-content">
                        <MDBContainer className="text-center my-5">
                            <Switch>
                                <Route exact path="/" component={Home} />
                                {/* <Route exact path="/chart1" component={Chart1} />
                                <Route exact path="/chart2" component={Chart2} /> */}
                            </Switch>
                        </MDBContainer>
                    </main>
                    <Footer />
                </BrowserRouter>
            </React.Fragment>
        );
    }
}

export default ReactApp;
Enter fullscreen mode Exit fullscreen mode
  • 我已经对图表组件进行了评论，因为我们现在还没有创建它们。
  • 我们已经导入了Header和Footer组件，并且根据请求/我们正在渲染Home组件。
  • 这里有一些关键字在 React 中具有特殊含义（例如Switch等等）。我建议你查看 React 官方文档来理解它们。
  • 如果你仔细观察，就会发现我们已经创建了网页框架。在BrowserRouter标签内部，你可以看到Header顶部、main中间和Footer底部的内容。

在ReactApp.css

.site-content {
    padding-top: 25px;
}
Enter fullscreen mode Exit fullscreen mode

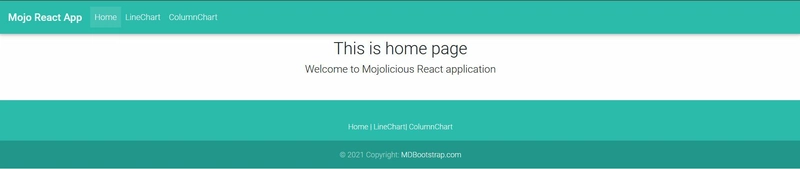

让我们运行它并观察它的运行情况。
替代文本

到目前为止，一切都很好。

创建图表

现在让我们尝试创建图表组件并取消注释这些行，ReactApp.js
我们将在 2 个单独的页面上为 2 个 API 端点创建 2 个图表。

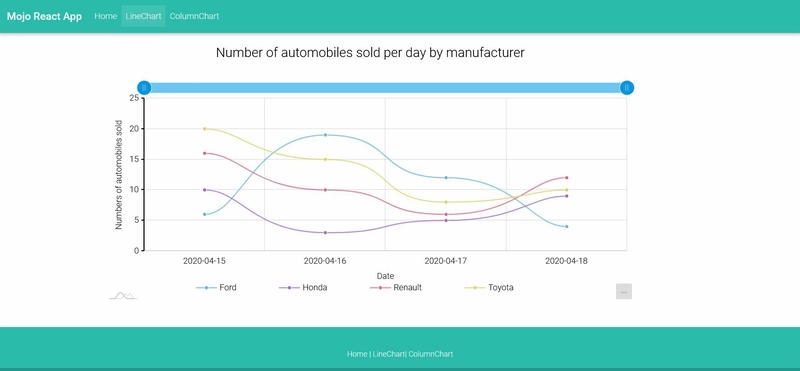

图表1

我正在使用这个名字，但最好在这里使用一些有意义的名字。
里面react-app\src\components\Chart1.jsx

import React, { Component } from "react";
import LineChart from "./Charts/LineChart";

class Chart1 extends Component {
    constructor(props) {
        super();
        this.state = {
            error: null,
            isLoaded: false,
            chartData: [],
        };
    }
    getChartData = () => {
        fetch("/api/v1/multi-line-chart")
            .then((response) => response.json())
            .then(
                (result) => {
                    this.setState({
                        isLoaded: true,
                        chartData: result.chart_data,
                    });
                },
                (error) => {
                    this.setState({
                        isLoaded: true,
                        error,
                    });
                }
            );
    };

    componentDidMount() {
        this.getChartData();
    }
    render() {
        if (this.state.error) {
            return <div>Error: {this.state.error.message}</div>;
        } else if (!this.state.isLoaded) {
            return (
                <div className="spinner-border" role="status">
                    <span className="sr-only">Loading...</span>
                </div>
            );
        } else {
            return (
                <React.Fragment>
                    <LineChart
                        chartId="chart1"
                        data={this.state.chartData.data}
                        axisNames={{
                            xAxis: [this.state.chartData.label.domainAxis],
                            yAxis: [this.state.chartData.label.rangeAxis],
                        }}
                        lineForXAxis="Date"
                        linesForFirstAxis={["Ford", "Honda", "Renault", "Toyota"]}
                        chartTitle={this.state.chartData.title}
                    />
                </React.Fragment>
            );
        }
    }
}

export default Chart1;
Enter fullscreen mode Exit fullscreen mode
  • 上述代码与react doc 上的AJAX 和 API部分中提供的代码类似。
  • 我们正在查询我们的 API 端点/api/v1/multi-line-chart，它将返回 JSON 响应，我们将把它传递给LineChart组件以创建多线图。
  • 在请求和获取响应的过程中，我们将使用Loading微调器。
  • 如果响应中出现任何错误，则会在 UI 上显示。
  • 有一件事很有趣，那就是LineChart组件。我之前创建过这个组件，本文的目的是展示它的强大功能。通过此组件，您可以创建单线图、多线图或多轴图。您还可以创建百分比图。无论您的 x 轴是否是日期轴，它都可以用于这两种轴。只需在 props 中传递参数，系统就会基于该参数动态创建图表。我们将对此进行研究。该LineChart组件为您提供了抽象层，它可以作为所有折线图的基础组件。

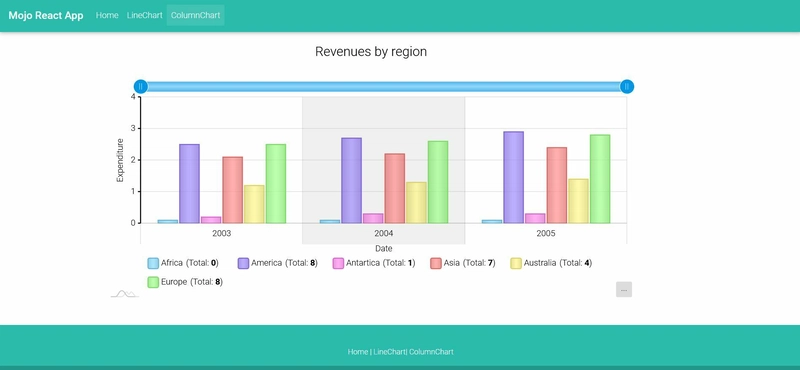

图2

里面react-app\src\components\Chart2.jsx

import React, { Component } from "react";
import StackedClusteredColumnChart from "./Charts/StackedClusteredColumnChart";

class Chart2 extends Component {
    constructor(props) {
        super();
        this.state = {
            error: null,
            isLoaded: false,
            chartData: [],
        };
    }
    getChartData = () => {
        fetch("/api/v1/stacked-column-chart")
            .then((response) => response.json())
            .then(
                (result) => {
                    this.setState({
                        isLoaded: true,
                        chartData: result.chart_data,
                    });
                },
                (error) => {
                    this.setState({
                        isLoaded: true,
                        error,
                    });
                }
            );
    };

    componentDidMount() {
        this.getChartData();
    }
    render() {
        if (this.state.error) {
            return <div>Error: {this.state.error.message}</div>;
        } else if (!this.state.isLoaded) {
            return (
                <div className="spinner-border" role="status">
                    <span className="sr-only">Loading...</span>
                </div>
            );
        } else {
            return (
                <React.Fragment>
                    <StackedClusteredColumnChart
                        chartId="chart2"
                        data={this.state.chartData.data}
                        axisNames={{
                            xAxis: [this.state.chartData.label.domainAxis],
                            yAxis: [this.state.chartData.label.rangeAxis],
                        }}
                        columnForXAxis="Year"
                        columnsForYAxis={["Africa", "America", "Antartica", "Asia", "Australia", "Europe"]}
                        chartTitle={this.state.chartData.title}
                    />
                </React.Fragment>
            );
        }
    }
}

export default Chart2;
Enter fullscreen mode Exit fullscreen mode
  • 我们正在查询我们的 API 端点/api/v1/stacked-column-chart，它将返回 JSON 响应，我们将把它传递给StackedClusteredColumnChart组件以创建柱形图。
  • 这和组件类似LineChart，功能也同样强大。只需在 props 中传递适当的参数，它就会为你完成所有工作。

在创建线和柱形图组件之前，让我们更新ReactApp.css用于加载微调器和图表 css

.site-content {
    padding-top: 25px;
}

.chart-display {
    width: 1000px;
    height: 500px;
}

.loader {
    border: 16px solid #f3f3f3;
    border-top: 16px solid #3498db;
    border-radius: 50%;
    width: 120px;
    height: 120px;
    animation: spin 2s linear infinite;
}

@keyframes spin {
    0% {
        transform: rotate(0deg);
    }
    100% {
        transform: rotate(360deg);
    }
}
Enter fullscreen mode Exit fullscreen mode

创建 LineChart.jsx

这是一个相当大的组件。Amcharts
附带了很多优秀的示例和文档。我建议您查看系列文档和多轴示例以了解更多信息。我修改了这些默认配置，并根据自己的需求进行了使用。这些配置都包含在文档中。我还在其中添加了注释，方便您理解。

里面react-app\src\components\Charts\LineChart.jsx

import React, { Component } from "react";
import * as am4core from "@amcharts/amcharts4/core";
import * as am4charts from "@amcharts/amcharts4/charts";
import am4themes_animated from "@amcharts/amcharts4/themes/animated";

class LineChart extends Component {
    constructor(props) {
        super(props);
        this.state = {
            chartId: this.props.chartId,
            chartdata: this.props.data,
            axisNames: this.props.axisNames,
            lineForXAxis: this.props.lineForXAxis,
            linesForFirstAxis: this.props.linesForFirstAxis,
            linesForSecondAxis: this.props.linesForSecondAxis
                ? this.props.linesForSecondAxis
                : null,
            legendNames: this.props.legendNames
                ? this.props.legendNames
                : this.props.linesForFirstAxis.concat(this.props.linesForSecondAxis),
            isPercentageChart: this.props.isPercentageChart ? true : false,
            isDateAxis: this.props.isDateAxis ? true : false,
        };
    }

    componentDidMount() {
        am4core.useTheme(am4themes_animated);
        const chart = am4core.create(this.state.chartId, am4charts.XYChart);
        this.createChart(chart);
        this.chart = chart;
    }

    componentWillUnmount() {
        if (this.chart) {
            this.chart.dispose();
        }
    }

    createDateAxis = (chart, xAxisName) => {
        let dateAxis = chart.xAxes.push(new am4charts.DateAxis());
        dateAxis.title.text = xAxisName;
        dateAxis.baseInterval.timeUnit = "minute";
        dateAxis.baseInterval.count = 1;
        let axisTooltip = dateAxis.tooltip;
        axisTooltip.background.strokeWidth = 0;
        axisTooltip.background.cornerRadius = 3;
        axisTooltip.background.pointerLength = 0;
        axisTooltip.dy = 5;
        dateAxis.tooltipDateFormat = "MMM dd HH:mm:ss";
        dateAxis.cursorTooltipEnabled = true;
        //dateAxis.renderer.minGridDistance = 50;
        //dateAxis.renderer.grid.template.disabled = true;
        dateAxis.renderer.line.strokeOpacity = 1;
        dateAxis.renderer.line.strokeWidth = 2;
        dateAxis.skipEmptyPeriods = true;
        return dateAxis;
    };
    createCategoryAxis = (chart, xAxisName) => {
        let categoryAxis = chart.xAxes.push(new am4charts.CategoryAxis());
        categoryAxis.dataFields.category = this.state.lineForXAxis;
        categoryAxis.title.text = xAxisName;

        categoryAxis.renderer.grid.template.location = 0;
        categoryAxis.renderer.minGridDistance = 20;
        categoryAxis.renderer.cellStartLocation = 0.1;
        categoryAxis.renderer.cellEndLocation = 0.9;
        return categoryAxis;
    };
    createValueAxisRange = (valueAxis, value, color, guideLabel) => {
        let axisRange = valueAxis.axisRanges.create();
        axisRange.value = value;
        axisRange.grid.stroke = am4core.color(color);
        axisRange.grid.strokeOpacity = 0.7;
        // https://developer.mozilla.org/en-US/docs/Web/SVG/Attribute/stroke-dasharray
        axisRange.grid.strokeDasharray = "4 5";
        axisRange.grid.opacity = 0.8;
        axisRange.grid.strokeWidth = 2;
        axisRange.label.inside = true;
        axisRange.label.text = guideLabel;
        axisRange.label.fill = axisRange.grid.stroke;
        axisRange.label.verticalCenter = "bottom";
        axisRange.label.horizontalCenter = "middle";
        return axisRange;
    };
    createValueAxis = (chart, yAxisName, opposite) => {
        let valueAxis = chart.yAxes.push(new am4charts.ValueAxis());
        valueAxis.title.text = yAxisName;
        valueAxis.min = 0;
        valueAxis.ghostLabel.disabled = true;
        valueAxis.extraMax = 0.1;
        valueAxis.numberFormatter = new am4core.NumberFormatter();
        valueAxis.numberFormatter.numberFormat = "# a";
        if (typeof opposite !== "undefined") {
            valueAxis.renderer.opposite = opposite;
        }
        if (this.state.linesForSecondAxis) {
            valueAxis.renderer.grid.template.disabled = true;
        }
        valueAxis.renderer.line.strokeOpacity = 1;
        valueAxis.renderer.line.strokeWidth = 2;
        valueAxis.renderer.ticks.template.disabled = false;
        valueAxis.renderer.ticks.template.strokeOpacity = 1;
        valueAxis.renderer.ticks.template.strokeWidth = 2;
        return valueAxis;
    };

    createAxis = (chart, xAxisName, yAxisName) => {
        // Create x-axes
        let xAxis;
        if (this.state.isDateAxis) {
            xAxis = this.createDateAxis(chart, xAxisName);
        } else {
            xAxis = this.createCategoryAxis(chart, xAxisName);
        }
        // Create y-axes
        let valueAxis = this.createValueAxis(chart, yAxisName);
        if (this.state.isPercentageChart) {
            // This is to create horizontal 'red' (on 80%) and 'green'(on 100%) lines
            this.createValueAxisRange(valueAxis, 80, "#ff0000", "Threshold");
            this.createValueAxisRange(valueAxis, 100, "#00b33c", "Goal");
        }
        return [xAxis, valueAxis];
    };

    createTrendLine = (chart, value, name, yAxisId, bulletType, fillOpacity) => {
        let series = chart.series.push(new am4charts.LineSeries());
        series.name = name;
        series.dataFields.valueY = value;
        if (this.state.isDateAxis) {
            series.dataFields.dateX = this.state.lineForXAxis;
        } else {
            series.dataFields.categoryX = this.state.lineForXAxis;
        }
        series.strokeWidth = 2;
        series.strokeOpacity = 0.8;
        series.tensionX = 0.7;
        series.yAxis = yAxisId;
        series.fillOpacity = fillOpacity;
        if (this.state.isPercentageChart) {
            series.tooltipText = "{name}: [bold]{valueY}%[/]";
        } else {
            series.tooltipText = "{name}: [bold]{valueY}[/]";
        }
        series.tooltip.background.cornerRadius = 13;
        series.tooltip.background.fillOpacity = 0.8;
        series.tooltip.exportable = false;
        series.minBulletDistance = 15;
        // Enable the number in the legend on hovering over the graph
        if (this.state.isPercentageChart) {
            series.legendSettings.itemValueText = "[bold]{valueY}%[/]";
            series.legendSettings.valueText =
                "(Avg: [bold]{valueY.average.formatNumber('#.##')}%[/])";
        } else {
            series.legendSettings.itemValueText = "[bold]{valueY}[/]";
        }
        // Add a drop shadow filter on columns
        //let shadow = series.filters.push(new am4core.DropShadowFilter());
        //shadow.dx = 10;
        //shadow.dy = 10;
        //shadow.blur = 5;
        let bullet;
        let hoverState;
        switch (bulletType) {
            case "rectangle":
                bullet = series.bullets.push(new am4charts.Bullet());
                let square = bullet.createChild(am4core.Rectangle);
                square.strokeWidth = 1;
                square.width = 7;
                square.height = 7;
                square.stroke = am4core.color("#fff");
                square.horizontalCenter = "middle";
                square.verticalCenter = "middle";
                hoverState = square.states.create("hover");
                hoverState.properties.scale = 1.7;
                break;
            case "triangledown":
            case "triangleup":
                bullet = series.bullets.push(new am4charts.Bullet());
                let triangle = bullet.createChild(am4core.Triangle);
                triangle.strokeWidth = 1;
                triangle.width = 7;
                triangle.height = 7;
                if (bulletType === "triangleup") {
                    triangle.direction = "top";
                } else {
                    triangle.direction = "bottom";
                }
                triangle.stroke = am4core.color("#fff");
                triangle.horizontalCenter = "middle";
                triangle.verticalCenter = "middle";
                hoverState = triangle.states.create("hover");
                hoverState.properties.scale = 1.7;
                break;
            case "circle":
            case "hollowcircle":
                bullet = series.bullets.push(new am4charts.CircleBullet());
                bullet.strokeWidth = 1;
                bullet.circle.radius = 3.5;
                bullet.fillOpacity = 1;
                if (bulletType === "circle") {
                    bullet.stroke = am4core.color("#fff");
                    bullet.circle.fill = series.stroke;
                } else {
                    bullet.stroke = series.stroke;
                    bullet.circle.fill = am4core.color("#fff");
                }
                hoverState = bullet.states.create("hover");
                hoverState.properties.scale = 1.7;
                break;
            default:
                break;
        }
        this.addEvents(series);
        return series;
    };
    addEvents = (series) => {
        // Enable interactions on series segments
        let segment = series.segments.template;
        segment.interactionsEnabled = true;

        // Create hover state
        let hoverState = segment.states.create("hover");
        hoverState.properties.strokeWidth = 4;
        hoverState.properties.strokeOpacity = 1;
    };
    createLegend = (chart) => {
        chart.legend = new am4charts.Legend();
        chart.legend.maxWidth = 400;
        chart.legend.markers.template.width = 40;
        chart.legend.markers.template.height = 10;
        // Use this to change the color of the legend label
        //chart.legend.markers.template.disabled = true;
        //chart.legend.labels.template.text = "[bold {color}]{name}[/]";
        chart.legend.itemContainers.template.paddingTop = 2;
        chart.legend.itemContainers.template.paddingBottom = 2;
        chart.legend.labels.template.maxWidth = 130;
        chart.legend.labels.template.truncate = true;
        chart.legend.itemContainers.template.tooltipText = "{name}";
        chart.legend.numberFormatter = new am4core.NumberFormatter();
        chart.legend.numberFormatter.numberFormat = "#.## a";
        chart.legend.itemContainers.template.events.on("over", (ev) => {
            let lineSeries = ev.target.dataItem.dataContext.segments.template;
            lineSeries.strokeOpacity = 1;
            lineSeries.strokeWidth = 4;
        });
        chart.legend.itemContainers.template.events.on("out", function (ev) {
            let lineSeries = ev.target.dataItem.dataContext.segments.template;
            lineSeries.strokeOpacity = 0.8;
            lineSeries.strokeWidth = 2;
        });
        chart.legend.valueLabels.template.adapter.add("textOutput", function (text, target) {
            if (text === "(Avg: [bold]%[/])" || text === "(Total: [bold][/])") {
                return "N/A";
            } else if (text === "[bold]%[/]" || text === "[bold][/]") {
                return "";
            }
            return text;
        });
    };

    createExportMenu = (chart, title) => {
        chart.exporting.menu = new am4core.ExportMenu();
        chart.exporting.menu.verticalAlign = "bottom";
        chart.exporting.filePrefix = title + " LineChart";
    };

    createCursor = (chart) => {
        chart.cursor = new am4charts.XYCursor();
    };

    createScrollBar = (chart, series) => {
        chart.scrollbarX = new am4core.Scrollbar();
        chart.scrollbarX.thumb.background.fill = am4core.color("#66c9ff");
        chart.scrollbarX.startGrip.background.fill = am4core.color("#0095e6");
        chart.scrollbarX.endGrip.background.fill = am4core.color("#0095e6");
        chart.scrollbarX.stroke = am4core.color("#66c9ff");
        chart.scrollbarX.height = "20";
        chart.scrollbarX.exportable = false;
        // Add simple vertical scrollbar
        // chart.scrollbarY = new am4core.Scrollbar();
        // chart.scrollbarY.thumb.background.fill = am4core.color("#66c9ff");
        // chart.scrollbarY.startGrip.background.fill = am4core.color("#0095e6");
        // chart.scrollbarY.endGrip.background.fill = am4core.color("#0095e6");
        // chart.scrollbarY.stroke = am4core.color("#66c9ff");
        // chart.scrollbarY.width = "20";
        // chart.scrollbarY.exportable = false;
    };

    addChartTitle = (chart, titleText) => {
        let title = chart.titles.create();
        title.text = titleText;
        title.fontSize = 25;
        title.marginBottom = 30;
    };

    createChart = (chart) => {
        chart.data = this.state.chartdata;
        chart.colors.step = 4;
        // This will change the background color of chart
        //chart.background.fill = "#fff";
        //chart.background.opacity = 0.5;
        this.createLegend(chart);

        this.createCursor(chart);

        // Use this to change bullet type in lines if needed
        //let bulletsType = ["circle", "triangleup", "triangledown", "hollowcircle", "rectangle"];
        let axis = this.createAxis(
            chart,
            this.state.axisNames.xAxis[0],
            this.state.axisNames.yAxis[0]
        );
        for (let i = 0; i < this.state.linesForFirstAxis.length; i++) {
            //if (typeof bulletsType[i] !== "undefined") {
            this.createTrendLine(
                chart,
                this.state.linesForFirstAxis[i],
                this.state.legendNames[i],
                axis[1],
                "circle"
            );
            //} else {
            //    this.createTrendLine(chart, this.state.linesForFirstAxis[i], axis[1]);
            //}
        }

        if (this.state.linesForSecondAxis) {
            let yAxis = this.createValueAxis(chart, this.state.axisNames.yAxis[1], "true");
            for (let i = 0; i < this.state.linesForSecondAxis.length; i++) {
                let series;
                let fillOpacity = 0.2;
                //if (typeof bulletsType[this.state.linesForSecondAxis.length - i] !== "undefined") {
                series = this.createTrendLine(
                    chart,
                    this.state.linesForSecondAxis[i],
                    this.state.legendNames[this.state.linesForFirstAxis.length + i],
                    yAxis,
                    "circle",
                    fillOpacity
                );
                //} else {
                //    series = this.createTrendLine(chart, this.state.linesForSecondAxis[i], yAxis);
                //}
                if (this.state.linesForSecondAxis.length === 1) {
                    yAxis.renderer.line.stroke = series.stroke;
                    yAxis.renderer.ticks.template.stroke = series.stroke;
                }
            }
        }
        this.createScrollBar(chart);
        if (this.props.chartTitle) {
            this.addChartTitle(chart, this.props.chartTitle);
            this.createExportMenu(chart, this.props.chartTitle);
        } else {
            this.createExportMenu(chart, "");
        }
    };

    componentDidUpdate(prevProps) {
        if (this.chart !== null) {
            if (JSON.stringify(prevProps.data) !== JSON.stringify(this.props.data)) {
                this.chart.data = this.props.data;
            }
        }
    }

    render() {
        return (
            <div>
                <div id={this.state.chartId} className="chart-display" />
            </div>
        );
    }
}

export default LineChart;
Enter fullscreen mode Exit fullscreen mode

创建 StackedClusteredColumnChart.jsx

再次，请阅读 amcharts 文档和演示，以便更好地理解。首先，您可以查看这个示例
。react-app\src\components\Charts\StackedClusteredColumnChart.jsx

import React, { Component } from "react";
import * as am4core from "@amcharts/amcharts4/core";
import * as am4charts from "@amcharts/amcharts4/charts";
import am4themes_animated from "@amcharts/amcharts4/themes/animated";

class StackedClusteredColumnChart extends Component {
    constructor(props) {
        super(props);
        this.state = {
            chartId: this.props.chartId,
            chartdata: this.props.data,
            axisNames: this.props.axisNames,
            columnForXAxis: this.props.columnForXAxis,
            columnsForYAxis: this.props.columnsForYAxis,
            legendNames: this.props.legendNames
                ? this.props.legendNames
                : this.props.columnsForYAxis,
            showDummyData: this.props.showDummyData ? true : false,
            isPercentageChart: this.props.isPercentageChart ? true : false,
            isDateAxis: this.props.isDateAxis ? true : false,
        };
    }
    componentDidMount() {
        am4core.useTheme(am4themes_animated);
        const chart = am4core.create(this.state.chartId, am4charts.XYChart);
        this.createChart(chart);
        this.chart = chart;
    }
    componentWillUnmount() {
        if (this.chart) {
            this.chart.dispose();
        }
    }
    getLinearGradientModifier = () => {
        // Adding greadient to create a round bar effect
        let fillModifier = new am4core.LinearGradientModifier();
        fillModifier.brightnesses = [0, 1, 1, 0];
        fillModifier.offsets = [0, 0.45, 0.55, 1];
        fillModifier.gradient.rotation = 0;
        return fillModifier;
    };
    getLinearGradient = (color1, color2) => {
        let gradient = new am4core.LinearGradient();
        gradient.addColor(color1);
        if (typeof color2 !== "undefined") {
            gradient.addColor(color2);
        } else {
            gradient.addColor("#66c9ff");
            gradient.addColor(color1);
        }
        gradient.rotation = 90;
        return gradient;
    };
    createLegend = (chart) => {
        chart.legend = new am4charts.Legend();
        chart.legend.maxWidth = 400;
        chart.legend.markers.template.width = 20;
        chart.legend.markers.template.height = 20;
        chart.legend.itemContainers.template.paddingRight = 2;
        chart.legend.itemContainers.template.paddingLeft = 2;
        chart.legend.labels.template.maxWidth = 100;
        chart.legend.labels.template.truncate = true;
        chart.legend.valueLabels.template.align = "left";
        chart.legend.valueLabels.template.textAlign = "end";
        chart.legend.itemContainers.template.tooltipText = "{name}";

        chart.legend.itemContainers.template.events.on("over", (ev) => {
            let seriesColumn = ev.target.dataItem.dataContext.columns.template;
            seriesColumn.fillOpacity = 1;
        });
        chart.legend.itemContainers.template.events.on("out", function (ev) {
            let seriesColumn = ev.target.dataItem.dataContext.columns.template;
            seriesColumn.fillOpacity = 0.7;
        });
        chart.legend.valueLabels.template.adapter.add("textOutput", function (text, target) {
            if (text === "(Avg: [bold]%[/])" || text === "(Total: [bold][/])") {
                return "N/A";
            } else if (text === "[bold]%[/]" || text === "[bold][/]") {
                return "";
            }
            return text;
        });
    };
    createScrollBar = (chart) => {
        chart.scrollbarX = new am4core.Scrollbar();
        chart.scrollbarX.background.fillOpacity = 0.7;

        let gradient = this.getLinearGradient("#0095e6");
        chart.scrollbarX.thumb.background.fill = gradient;
        chart.scrollbarX.thumb.background.fillOpacity = 0.7;
        chart.scrollbarX.startGrip.background.fill = am4core.color("#0095e6");
        chart.scrollbarX.endGrip.background.fill = am4core.color("#0095e6");
        chart.scrollbarX.stroke = am4core.color("#66c9ff");
        chart.scrollbarX.height = "20";
        chart.scrollbarX.exportable = false;
    };
    createExportMenu = (chart, title) => {
        chart.exporting.menu = new am4core.ExportMenu();
        chart.exporting.menu.verticalAlign = "bottom";
        chart.exporting.filePrefix = title + " StackedColumnChart";
    };
    createCursor = (chart) => {
        chart.cursor = new am4charts.XYCursor();
    };
    createDateAxis = (chart, xAxisName) => {
        let dateAxis = chart.xAxes.push(new am4charts.DateAxis());
        dateAxis.title.text = xAxisName;
        dateAxis.cursorTooltipEnabled = true;
        dateAxis.renderer.minGridDistance = 30;
        dateAxis.renderer.cellStartLocation = 0.1;
        dateAxis.renderer.cellEndLocation = 0.9;
        dateAxis.skipEmptyPeriods = true;
        dateAxis.renderer.grid.template.location = 0;
        dateAxis.renderer.axisFills.template.disabled = false;
        dateAxis.renderer.axisFills.template.fill = am4core.color("#b3b3b3");
        dateAxis.renderer.axisFills.template.fillOpacity = 0.2;
        return dateAxis;
    };
    createCategoryAxis = (chart, xAxisName) => {
        let categoryAxis = chart.xAxes.push(new am4charts.CategoryAxis());
        categoryAxis.dataFields.category = this.state.columnForXAxis;

        categoryAxis.title.text = xAxisName;
        categoryAxis.renderer.grid.template.location = 0;
        categoryAxis.renderer.minGridDistance = 20;
        categoryAxis.renderer.cellStartLocation = 0.1;
        categoryAxis.renderer.cellEndLocation = 0.9;
        categoryAxis.renderer.axisFills.template.disabled = false;
        categoryAxis.renderer.axisFills.template.fillOpacity = 0.2;
        categoryAxis.renderer.axisFills.template.fill = am4core.color("#b3b3b3");
        return categoryAxis;
    };
    createValueAxis = (chart, yAxisName) => {
        let valueAxis = chart.yAxes.push(new am4charts.ValueAxis());
        valueAxis.title.text = yAxisName;
        valueAxis.min = 0;
        valueAxis.ghostLabel.disabled = true;
        valueAxis.extraMax = 0.1;
        valueAxis.renderer.line.strokeOpacity = 1;
        valueAxis.renderer.line.strokeWidth = 2;
        valueAxis.renderer.ticks.template.disabled = false;
        valueAxis.renderer.ticks.template.strokeOpacity = 1;
        valueAxis.renderer.ticks.template.strokeWidth = 2;
        return valueAxis;
    };
    createValueAxisRange = (valueAxis, value, color, guideLabel) => {
        let axisRange = valueAxis.axisRanges.create();
        axisRange.value = value;
        axisRange.grid.stroke = am4core.color(color);
        axisRange.grid.strokeOpacity = 0.7;
        // https://developer.mozilla.org/en-US/docs/Web/SVG/Attribute/stroke-dasharray
        axisRange.grid.strokeDasharray = "4 5";
        axisRange.grid.opacity = 0.8;
        axisRange.grid.strokeWidth = 2;
        axisRange.label.inside = true;
        axisRange.label.text = guideLabel;
        axisRange.label.fill = axisRange.grid.stroke;
        axisRange.label.verticalCenter = "bottom";
        axisRange.label.horizontalCenter = "middle";
        return axisRange;
    };

    createAxis = (chart, xAxisName, yAxisName) => {
        // Create x-axes
        let xAxis;
        if (this.state.isDateAxis) {
            xAxis = this.createDateAxis(chart, xAxisName);
        } else {
            xAxis = this.createCategoryAxis(chart, xAxisName);
        }
        // Create y-axes
        let valueAxis = this.createValueAxis(chart, yAxisName);
        if (this.state.isPercentageChart) {
            // This is to create horizontal 'red' (on 80%) and 'green'(on 100%) lines
            this.createValueAxisRange(valueAxis, 80, "#ff0000", "Threshold");
            this.createValueAxisRange(valueAxis, 100, "#00b33c", "Goal");
        }
        return [xAxis, valueAxis];
    };

    createSeries = (chart, field, name, stacked, showDummyData) => {
        // For normal coloums
        let series = chart.series.push(new am4charts.ColumnSeries());
        // For 3D coloums
        //let series = chart.series.push(new am4charts.ColumnSeries3D());
        series.name = name;
        series.dataFields.valueY = field;
        if (this.state.isDateAxis) {
            series.dataFields.dateX = this.state.columnForXAxis;
        } else {
            series.dataFields.categoryX = this.state.columnForXAxis;
        }
        if (showDummyData && !this.state.isPercentageChart) {
            series.columns.template.propertyFields.dummyData = field + "_breakdown";
            series.columns.template.tooltipText =
                "[bold]{name} #{categoryX}\n[bold]Total:[/] {valueY}\n[#00cc44 bold]Pass:[/] {dummyData.pass}\n[#ff0000 bold]Fail:[/] {dummyData.fail}\n[#ff471a bold]Error:[/] {dummyData.error}\n[#ff9900 bold]Terminated:[/] {dummyData.terminated}[/]";
        } else if (this.state.isPercentageChart) {
            series.columns.template.tooltipText = "{name}: [bold]{valueY}%[/]";
        } else {
            series.columns.template.tooltipText = "{name}: [bold]{valueY}[/]";
        }
        series.strokeWidth = 2;
        series.tooltip.background.fillOpacity = 0.9;
        series.tooltip.exportable = false;
        series.stacked = stacked;
        series.columns.template.width = am4core.percent(90);
        series.columns.template.fillOpacity = 0.7;
        series.tooltip.getFillFromObject = false;
        series.tooltip.background.fill = am4core.color("#ffffff");
        series.tooltip.background.stroke = chart.colors.getIndex(
            chart.colors.currentStep - chart.colors.step
        );
        series.tooltip.background.strokeWidth = 2;
        series.tooltip.label.fill = am4core.color("#000000");

        let fillModifier = this.getLinearGradientModifier();
        series.columns.template.fillModifier = fillModifier;
        if (this.state.isPercentageChart) {
            series.legendSettings.itemValueText = "[bold]{valueY}%[/]";
            series.legendSettings.valueText =
                "(Avg: [bold]{valueY.average.formatNumber('#.##')}%[/])";
        } else {
            series.legendSettings.itemValueText = "[bold]{valueY}[/]";
            series.legendSettings.valueText = "(Total: [bold]{valueY.sum.formatNumber('#.')}[/])";
        }
        series.cursorTooltipEnabled = false;
        this.addEvents(series);
    };

    addChartTitle = (chart, titleText) => {
        let title = chart.titles.create();
        title.text = titleText;
        title.fontSize = 25;
        title.marginBottom = 30;
    };

    addEvents = (series) => {
        let hoverState = series.columns.template.states.create("hover");
        hoverState.properties.fillOpacity = 1;
    };

    preZoomChart = (chart, xAxis) => {
        chart.events.on("ready", (a) => {
            // different zoom methods can be used - zoomToIndexes, zoomToDates, zoomToValues
            if (this.state.isDateAxis) {
                xAxis.start = 0.4;
                xAxis.end = 1;
            } else {
                xAxis.zoomToIndexes(chart.data.length - 9, chart.data.length, false, true, true);
            }
        });
    };

    createChart = (chart) => {
        chart.data = this.state.chartdata;
        chart.colors.step = 3;
        if (this.props.isDateAxis) {
            chart.dateFormatter.inputDateFormat = "yyyy-MM-ddThh";
        }
        this.createLegend(chart);
        this.createCursor(chart);
        // Fow now its single axis hence '0'
        let axis = this.createAxis(
            chart,
            this.state.axisNames.xAxis[0],
            this.state.axisNames.yAxis[0]
        );

        this.createScrollBar(chart);
        if (this.props.chartTitle) {
            this.addChartTitle(chart, this.props.chartTitle);
            this.createExportMenu(chart, this.props.chartTitle);
        } else {
            this.createExportMenu(chart, "");
        }
        for (let i = 0; i < this.state.columnsForYAxis.length; i++) {
            this.createSeries(
                chart,
                this.state.columnsForYAxis[i],
                this.state.legendNames[i],
                false,
                this.state.showDummyData
            );
        }

        // Prezoom only one we have some big dataset (equal or more than 10 points on xaxis)
        if (chart.data.length > 9) {
            this.preZoomChart(chart, axis[0]);
        }
        // Extending the axisFills to axis labels
        chart.plotContainer.adapter.add("pixelHeight", function (value, target) {
            return value + 40;
        });
    };
    render() {
        return (
            <div>
                <div id={this.state.chartId} className="chart-display" />
            </div>
        );
    }
}

export default StackedClusteredColumnChart;
Enter fullscreen mode Exit fullscreen mode

我尽量使用合适的函数名，以便您轻松理解我在图表中所做的操作。此外，我还在函数名之间添加了注释，方便您理解。

让我们运行一下，看看效果如何。
点击导航栏上的“折线图”。 柱形图也类似。
替代文本

替代文本

让我们实时观察一下动作。

图表 gif

注意 - 如果上面的 gif 不起作用，您可以直接查看 - https://dev-to-uploads.s3.amazonaws.com/uploads/articles/6d836lpxie5c24rxs49f.gif

外卖

有些地方我解释得不太清楚。文章篇幅过长，而且有很多地方可以找到这些信息。另外，我的目的是展示 amcharts 库在 react.js 中的用法。我们之前已经做过很多次类似的事情（如果你一直在关注我的文章）。目前唯一的区别是 jsx
LineChart和StackedClusteredColumnChart组件是两个关键点。你可以在代码中将它们作为独立组件使用，也可以根据需要进行修改。

结论

我们的系列文章到此结束。
在过去的几个月里，我学习了不同的图表库以及它们的使用方法。我基于这些学习内容撰写了不同的文章。

当然还有当前的。

希望这些库将来能对你有所帮助。这些库都非常强大，你可以使用其中任何一个来创建elegenet图表。

上述示例也可在github上找到。

参考

Amcharts 徽标取自此处
React 徽标取自此处

鏂囩珷鏉ユ簮锛�https://dev.to/raigaurav/data-visualization-creating-charts-using-rest-api-s-in-react-js-fmi
Devto 翻译
PREV
理解 C# 中的 IQueryable<T>
NEXT
使用 Facebook 数据和 JavaScript 抛弃无用的朋友 获取数据 从 JavaScript 读取 JSON 解析数据 解码反应表情符号 选择要抛弃的朋友 再见
